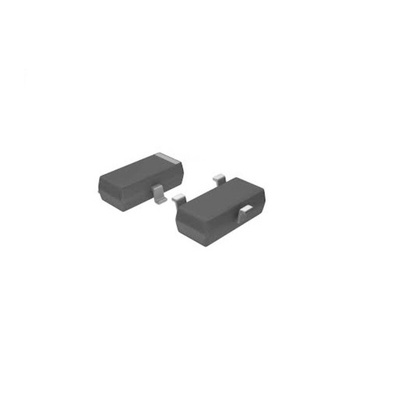

Microchip Voltage Supervisor 2.6V max. 3-Pin SOT-23, MIC803-26D2VM3-TR

The Microchip single voltage supervisor with open drain RESET output that provides accurate power supply monitoring and reset generation in microprocessor based systems. The function of the device is to assert a reset signal if the power supply voltage drops below the reset threshold voltage, and retain this reset for the reset timeout period once the power supply increases above the reset threshold voltage.

4.5 μA Supply current typical at 3.6 V
Open-Drain /RESET output
RESET Remains Valid with VCC as low as 1 V
20 ms, 140 ms, or 1120 ms Minimum reset timeout options
2.63 V to 4.63 V Preset voltage threshold options
2.5 % Voltage Threshold accuracy over temperature
–40°C to +125°C Junction temperature range

Datasheet - MIC803-26D2VM3-TR
