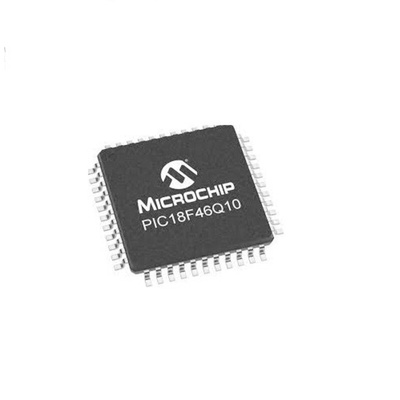

Microchip PIC18F46Q10-I/PT PIC Microcontroller, PIC, 64 kB Flash, 44-Pin QFP

The Microchip microcontroller features analog, core independent, and communication peripherals for a wide range of general purpose and low power applications. These 28/40/44-pin devices are equipped with a 10-bit ADC with Computation (ADC2) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. They also offer a set of core independent peripherals such as Complementary Waveform Generator (CWG), Windowed Watchdog timer (WWDT), Cyclic Redundancy Check (CRC)/Memory Scan, Zero-Cross Detect (ZCD), Configurable Logic Cell (CLC), and Peripheral Pin Select (PPS), providing increased design flexibility and lower system cost.

C Compiler optimized RISC architecture
64 MHz clock input over the full VDD range
62.5 ns minimum instruction cycle
Programmable 2-level interrupt priority
31-Level deep hardware stack
Three 8 bit Timers (TMR2/4/6) with hardware limit timer (HLT)
Four 16-Bit Timers (TMR0/1/3/5)
Low current power on reset (POR)
Power up timer (PWRT)
Brown out reset (BOR)
low power BOR (LPBOR) option

Datasheet - PIC18F46Q10-I/PT
