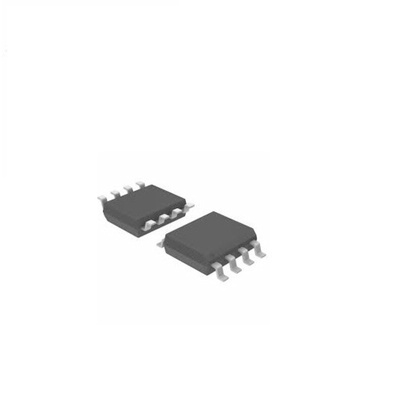

Microchip TC4420COA 1, 6 A, 18V 8-Pin, SOIC

The Microchip 6 A peak, single output MOSFET driver is a non-inverting driver. This is fabricated in CMOS for lower power and more efficient operation versus bipolar drivers. Both devices have TTL/CMOS compatible inputs that can be driven as high as VDD + 0.3 V or as low as –5 V without upset or damage to the device. This eliminates the need for external level-shifting circuitry and its associated cost and size. The output swing is rail-to-rail, ensuring better drive voltage margin, especially during power-up/power-down sequencing. Propagational delay time is only 55 ns typical and the output rise and fall times are only 25 ns into 2500 pF across the usable power supply range.

Latch-up protected will withstand >1.5 A
Reverse output current
Logic input will withstand negative swing Up to 5 V
ESD protected 4 kV
Matched rise and fall times 25 ns
High peak output current 6 A
Wide input supply voltage operating range 4.5 V to 18 V
High capacitive load drive capability 10,000 pF
Short delay time 55 ns

Datasheet - TC4420COA
