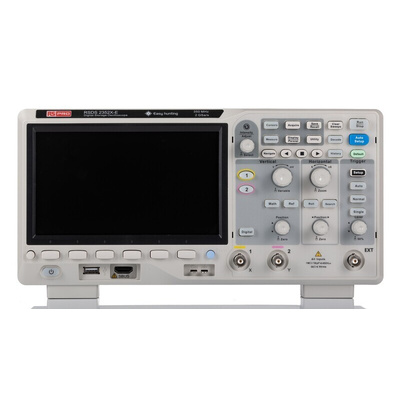

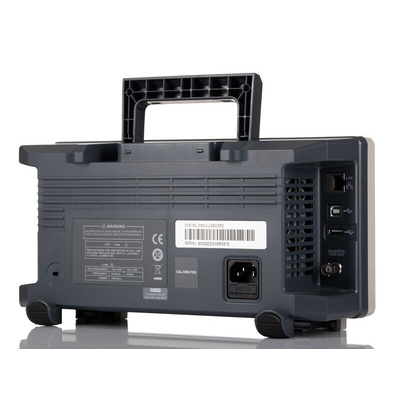

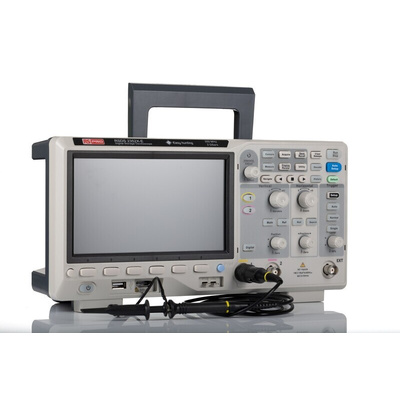

RS PRO RS-SDS2352X-E Digital Bench Oscilloscope, 2 Analogue Channels, 350MHz, 16 Digital Channels

2368985
Производитель: RS PRO
Цена за шт.
370386.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Super Phosphor Oscilloscope

Introducing the range of RS PRO Phosphor Oscilloscopes, an all-in-one solution for all of your test and measurement needs. The high-performance range offers a wide bandwidth range with 16 digital and 2 analogue channels and can easily be connected via USB connection to easily download measurement results, while the 7-inch TFT LCD screen offers an easy way to read results. The user-friendly interface and the versatility of this range of oscilloscopes make it an ideal choice for applications that may require more functionality around measurement parameters.

Features and Benefits:

  • This range of RS PRO digital phosphor oscilloscopes is the perfect plug and play solution to applications where all in one functionality is required for a wide range of measurement parameters

  • It has a sleek and professional design that looks the part, while ensure ultimate reliability and performance, so the accuracy and quality of the measurement is never compromised

  • This oscilloscope offers of a wide range of automatic measurement functions, as well as a variety of trigger functions for ultimate versatility

  • Supplied with a power cable, USB cable, passive probe and software installation CD that includes the user manual for the oscilloscope

Technical Features:

  • Bandwidth: 350 MHz with 2 analogue channels and 16 digital channels

  • 2 GSa/s (single channel) / 1 GSa/s (dual channel) real-time sampling rate

  • 500 μV/div to 10 V/div input sensitivity

  • FFT spectrum analyser

  • Operating System: Windows 7, Windows 8, Windows 10

Applications:

Digital oscilloscopes are complex and multi-functional electronic laboratory instruments used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries and can be used for:

  • Circuit measurement

  • Wind power, PV power and other new energy equipment testing

  • Automotive electronics and electric vehicle testing

  • Electric power systems

  • Industrial and quality control measurement

  • Education and science research

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Вес:
3.8кг
Время нарастания:
1нс
Входной импеданс:
1MΩ ±2% 18pf ±2pf
Интерфейс:
USB
Источник питания:
Mains
Количество аналоговых каналов:
2
Количество цифровых каналов:
16
Минимальная вертикальная чувствительность:
10
Полоса - ширина:
350МГц
Размер экрана:
7in
Размеры:
312 x 132.6 x 151mm
Разрешение по вертикали:
8 бит
Тип вилки:
Mains
Тип дисплея:
TFT LCD
Тип осциллографа:
Bench
Форма осциллографа:
Digital Phosphor
Цифровой/аналоговый:
Цифровой
Частота обновления формы волны:
110000
