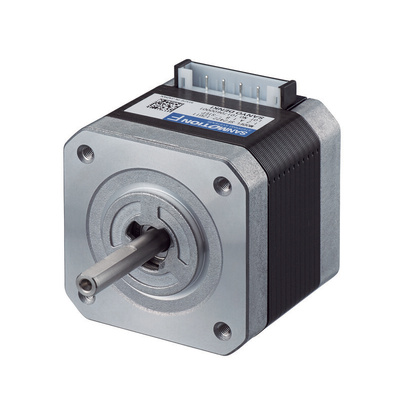

SF2422-10B11, Sanyo Denki Stepper Motor, 0.43Nm Torque, 24 V, 1.8°

The Sanyo Denki dual shaft, bipolar, 2-phase stepping motor. In comparison to previous models holding torque has been increased approximately by 10%, have noise levels reduced approximately 3 dB(A) lower and motor efficiency has been improved by 2.4%. This contributes to reduction in power consumption of devices and the motor's heat dissipation.

Dual shaft, bi-polar with motor flange size of 42 mm sq
Motor length of 39mm and a DC input
Operating temperature range is -10°C to 50°C
Allowable radial load is 10 N
Allowable thrust load is 20 N
Reduced noise levels by 3 dB

Datasheet - SF2422-10B11
