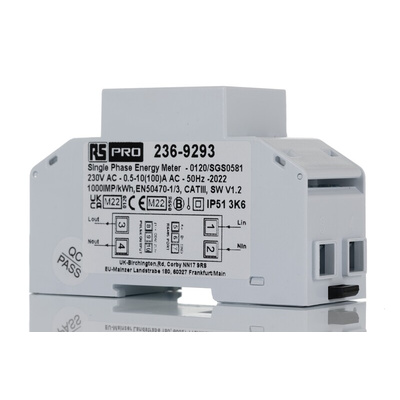

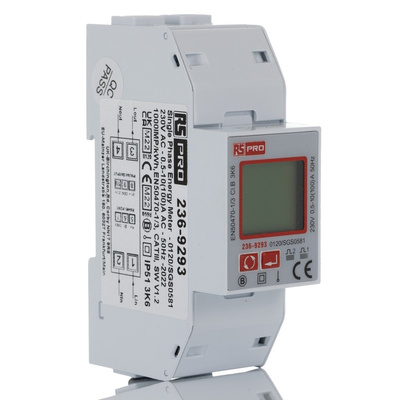

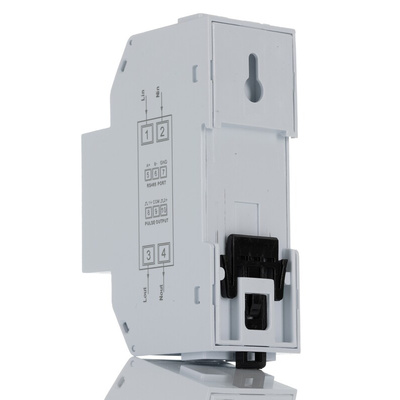

RS PRO 1 Phase LCD Backlit Energy Meter, Type Energy Meter

RS PRO 1 Phase LCD Backlit Energy Meter with Built-in Pulse Output & Modbus (MID B&D Approved - 0120/SGS0581) MID Certified kWh/Energy Meters for sub billing/revenue/tariff billing

The RS PRO 1 phase multi-function energy meter is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase networks / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter. It works directly connected to a maximum load 100A AC circuit, which means it does not require current transformers. These RS PRO power meters have been designed with the highest quality and versatility in mind and utilize the latest microprocessor and technology. It has a backlit display and 16 different measuring parameters. With built in pulsed out- puts and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.

The RS Pro 1 phase multi-function energy meter is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase networks / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter. It works directly connected to a maximum load 100A AC circuit. It produced to the highest quality and utilizes the latest microprocessor and technology. It has a backlit display and 16 different measuring parameters. With built in pulsed out- puts and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems. This model does not require Current Transformers as it is directly connected to single phase 100A AC circuits.

Phase to neutral voltage 100 to 289V AC
Phase current 0 to 120A AC (direct measurement)
Power 0 to 3600 MW
Reactive power 0 to 3600 MVAr
Power factor 1% of unity (0.01)

With built in RS485 Modbus RTU for remote communication is provided, and Communication parameters are password protected in setup mode. User can check data and set up the meter via the buttons on the front panel. This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0581 (MID B&D Approved - 0120/SGS0581)

Features and Benefits

MID B&D Approved - 0120/SGS0581
Single Phase (1P2W)
Multifunction
100A AC
230V AC
RS485 Modbus RTU
Dual Pulse Outputs
2-DIN Module
Digital Backlit Display
4 Measurement Modes for kW Readings

Applications

This range of RS PRO Energy Meters are ideal for measuring and monitoring energy and power consumption. Measuring applications are dependant on the many different types of power meters that measure different parameters. These power meters are versatile, they display and measure voltages, power factors and reactive factor. Ideal for use across a wide variety of applications, but can most commonly be found in:
UPS power supplies
Laboratory equipment
Circuit breaker monitoring
Network management
Power Plants
Homes and businesses to monitor and display how much energy you have consumed on behalf of the energy supplier

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
