RS PRO 1, 3 Phase LCD Backlit Energy Meter, Type Energy Meter

RS PRO 1, 3 Phase LCD Backlit Energy Meter with Built-in Pulse Output & Modbus (MID B&D Approved - 0120/SGS0582) MID Certified kWh/Energy Meters for sub billing/revenue/tariff billing

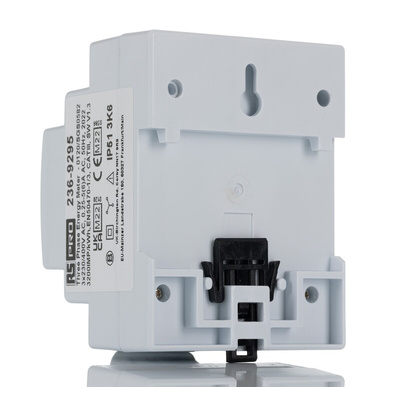

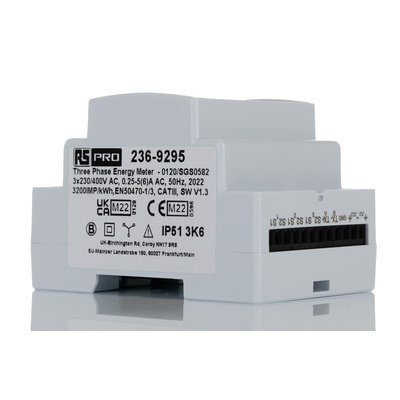

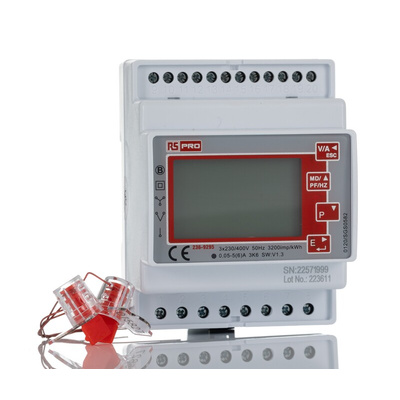

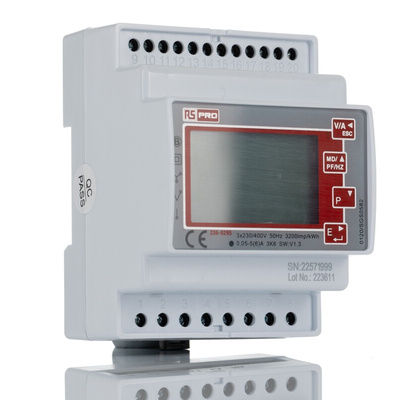

236-9295 Series is a three-phase multifunction DIN-rail meter. It can measure and display the characteristic of 1p2w,3p3wand 3p4wsupplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over pre-set periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the meter. The required current inputs are obtained via current transformers. This meter can be configurable to work with a wide range of CTs, giving the unit a wide range of operations. The built-in interface provides pulse and RS485 Modbus RTU outputs. All the configuration is password protected.
The EC Type Examination Certificate Number is 0120/SGS0582 (MID B&D Approved - 0120/SGS0582).

Product Features

• MID B&D Approved - 0120/SGS0582


• Single Phase (1P2W) or Three Phase (3P3W or 3P4W)


• Multifunction Meter (16 different parameters)


• CT Operated (1A or 5A secondary - settable)


• 230/400V AC


• RS485 Modbus RTU


• Dual Pulse Outputs built-in


• 4-DIN Module


• Digital Backlit Display


• Touch Screen Buttons

Applications

The RS Pro 3 phase multi-function energy meter is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase and Three Phase networks / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter. It works in conjunction with either a 1 or 5 Amp current transformer for AC circuits. The product is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display and 16 different measuring parameters. This includes a negative power reading to indicate reversal of CT installation or connection. With built in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.

Why RS PRO?

Phase to neutral voltages 100 to 289V AC (not for 3p3w supplies)
Voltages between phases 173 to 500V AC (3p3w supplies only)
Power 0 to 3600 MW
RS485 communication channel that can be programmed for Modbus RTU protocol
Relay output indicating real-time measured energy
Voltage 0·5% of range maximum
Current 0·5% of nominal
Power factor 1%

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
