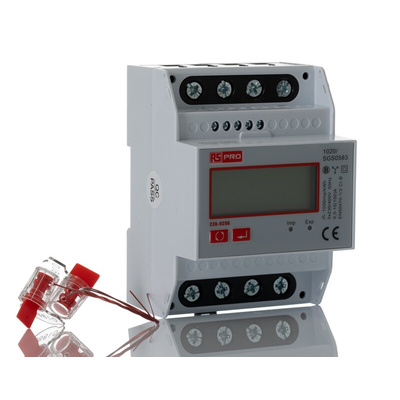

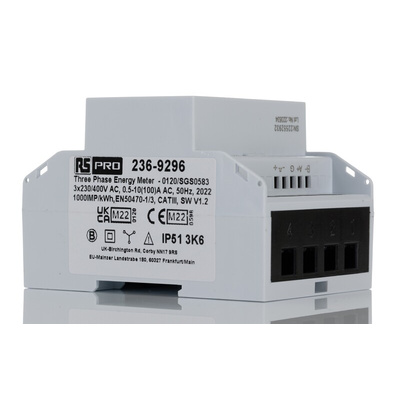

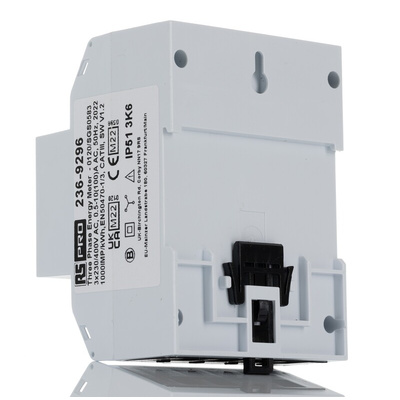

RS PRO 3 Phase LCD Backlit Energy Meter, Type Energy Meter

RS PRO 3 Phase LCD Backlit Energy Meter with Built-in Pulse Output & Modbus (MID B&D Approved - 0120/SGS0583) MID Certified kWh/Energy Meters for sub billing/revenue/tariff billing

The 236-9296 is a new generation modern design power monitor that will measure and display electrical power quality parameters. The 236-9296 is an entry level three phase multi-function energy monitoring solution with a built-in pulsed output and RS485 Modbus outputs for remote reading. It has been engineered to cover most applications (Three Phase networks and works directly connected to a maximum load 100A AC circuit. The 236- 9296 will only measure and display Active energy (kWh), Current / Voltage / Power per phase, Total Power, IMP & EXP energy as an entry level multi-function meter.
The EC Type Examination Certificate Number is 0120/SGS0583 (MID B&D Approved - 0120/SGS0583)

Features and Benefits

MID B&D Approved - 0120/SGS0583
100A Direct Connected
Modbus RS485 communication
Total Active Energy (kWh)
Three Phase (3p4w)
400V +/- 20% Measured Voltage
1000imp/kWh Pulsed output
LCD Display 6+1= 999999.9

Applications

The RS Pro 3 phase energy meter is a new generation modern design power monitor that will measure and display electrical power quality parameters. This is an entry level three- phase multi-function energy monitoring solution with a built-in pulsed output and RS485 Modbus outputs for remote reading. It has been engineered to cover most applications (Three Phase networks and works directly connected to a maximum load 100A AC circuit. It will only measure and display Active energy (kWh), Current / Voltage / Power per phase, Total Power, IMP & EXP energy as an entry level multi-function meter.

Why RS PRO?

Class 1 kWh according to EN62053-21
Class B according to EN50470-3
Maximum energy reading 99999.9 kWh
4-DIN module
Self-supplied auxiliary power supply
Pulsed output/RS485 modbus
Nominal voltage 3x230V/400V AC
Operational voltage 0.7-1.3Un
