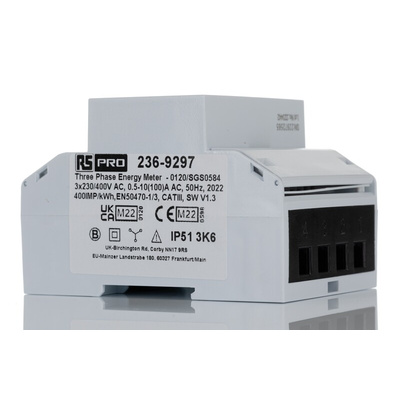

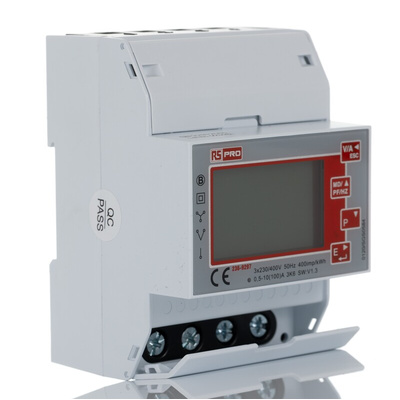

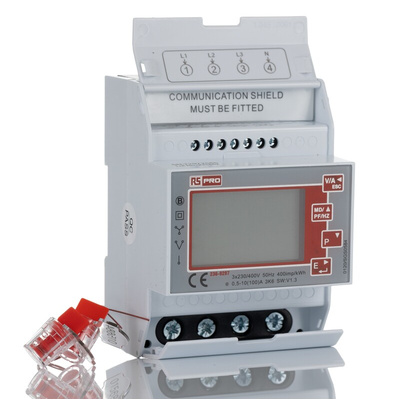

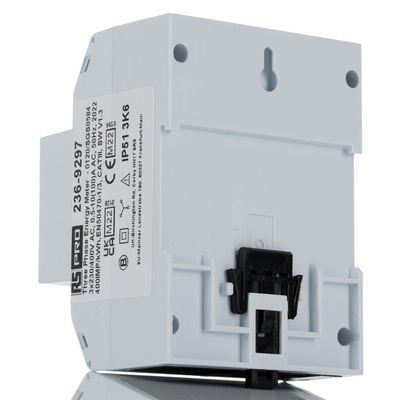

RS PRO 3 Phase LCD Backlit Energy Meter, Type Energy Meter

RS PRO 3 Phase LCD Backlit Energy Meter with Built-in Pulse Output & Modbus (MID B&D Approved - 0120/SGS0584) MID Certified kWh/Energy Meters for sub billing/revenue/tariff billing

236-9297 is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase and Three Phase networks / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter. As the demand for MID certified meters has increased, we have obtained annex B and D of the EC Directive 2004/22/EC. This power meter has been tested and certified for single or three phase networks and import and export active energy (kWh). The 236-9297 is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display and 16 different measuring parameters. This meter supports 100A Direct connection, with built in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.
The EC Type Examination Certificate Number is 0120/SGS0584 (MID B&D Approved - 0120/SGS0584).

Features and Benefits

• MID B&D Approved - 0120/SGS0584


• Single Phase (1P2W) or Three Phase (3P3W or 3P4W)


• Multifunction


• 100A AC


• 230/400V AC


• RS485 Modbus RTU


• Dual Pulse Outputs


• 4-DIN Module


• Digital Backlit Display


• Touch Screen Buttons

Applications

The RS Pro 3 phase multi-function energy meter is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase and Three Phase networks / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter. It works directly connected to a maximum load 100A AC circuit. It produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display and 16 different measuring parameters. With built in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems. This model does not require Current Transformers as it is directly connected to 3 phase 100A AC circuits.

Why RS PRO?

Phase to neutral voltages 100 to 289V AC (not for 3p3w supplies)
Voltages between phases 173 to 500V AC (3p3w supplies only)
Power 0 to 3600 MW
RS485 communication channel that can be programmed for Modbus RTU protocol
Relay output indicating real-time measured energy
Voltage 0·5% of range maximum
Current 0·5% of nominal
Power factor 1%

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
