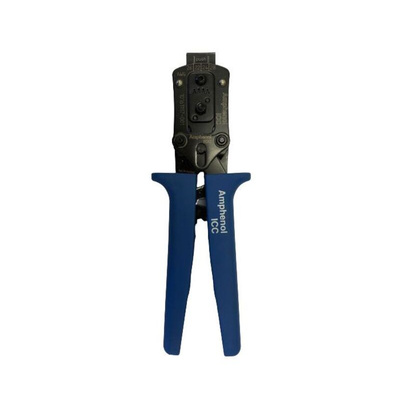

10161117-001, Amphenol Communications Solutions Minitek MicroSpace Hand Crimp Tool for Minitek MicroSpace Connector Contacts

The Amphenol ICC 10161117 crimping hand tool is professionally designed for applications in the prototyping phase or small production quantities. The hand tool has a mechanism which opens automatically after making the last advance of the ratchet. It has 4 different crimping cavities giving you all the crimps in one convenient tool. The hand tool is designed for Amphenol’s minitek microspace crimp to-wire product family. This connector platform’s unique design enables LV214 Severity-2 and performs at 1.80mm, 1.50mm and 1.27mm pitch. Minitek microspace is available in single and double row versions, with top or side latch configurations.

4 different crimp cavities in one product
AWG sizes 22 – 24 – 26 – 28
Ergonomic handle for optimal grip
