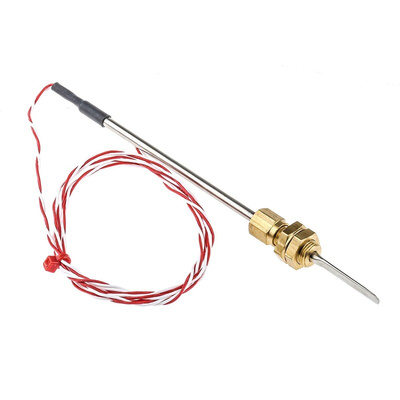

RS PRO PT100 RTD Sensor, 4mm Dia, 150mm Long, 2 Wire, G1/8, Class B +250°C Max, Датчик

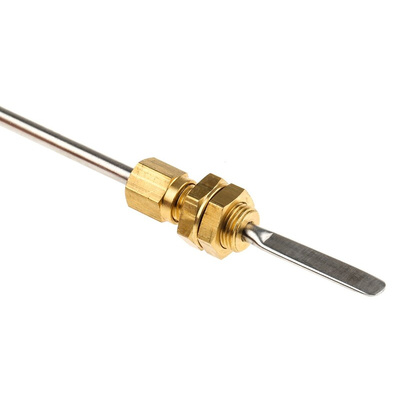

RS PRO PT100 PRT flat tip probe

From the trusted brand RS PRO, comes a high quality and great value PT100 PRT (Platinum resistance thermometer) probe. With its robust construction, this 316-stainless steel probe is an excellent solution for temperature measurement.

Features and benefits:

• Flattened at tip for improved thermal response


• Temperature range -50°C to + 250°C


• Waterproof stainless-steel sheath for use in adverse conditions


• Flat 25mm of sheath improves response time


• 1/8” BSPP brass male compression fitting with locking nut

Applications

These platinum resistance temperature probes have a variety of application use such as;

• Heating


• Air conditioning


• Stoves and grills


• Food processing


• Energy

What is a PT100 sensor?

A PT100 sensor is considered the most rugged and common form of a RTD (resistance temperature detector) and have a resistance of 100 ohms (Ω)

How do platinum resistance thermometers work?

Platinum resistance thermometers work by measuring accurate changes in electrical resistance when the temperature changes. The resistance is measured by when a current is passed through it and the voltage is measured using a suitable voltmeter. The voltage reading is then converted into temperature with the aid of calibration equipment.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
