SKF Lock Nut 67x75x11mm, KM 11

SKF Bearing Assembly, Lock Nut Type, 75mm OD, 91.5kN Static Axial Load Carrying Capacity - KM 11

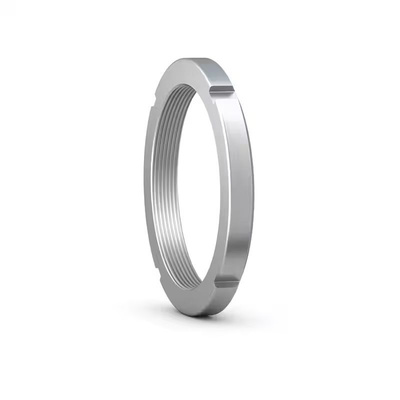

Are you looking for a reliable way to hold a bearing on your machine's shaft or spindle? Go for this lock nut from SKF. It ensures that thrust load is evenly distributed across the bearing, which minimises the chances of damage or premature wear. The device has four slots equally spaced around its edge so you can get a grip on it with a hook spanner (204-4542). Thanks to its static axial load carrying capacity of 91.5kN, this is a suitable option for heavy-duty applications.

Features & Benefits

• Can be reused multiple times with a new lock washer as long as it's not damaged
• Light weight of 170g puts minimal strain on the shaft
• Compact inner diameter of 55mm for use in smaller systems

Applications

• Medical equipment
• Solar tracking systems
• Marine applications

What washer should I use with this lock nut?

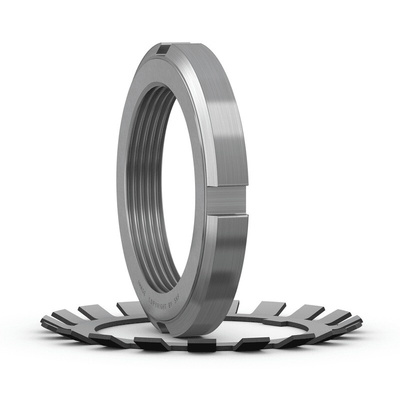

It works at its best when paired with an SKF lock washer (237-2222). This helps the nut maintain proper alignment in your equipment and adds extra security by preventing attached components from coming loose during demanding operations.

Datasheet - KM 11

Catalogue - Rolling Bearings
