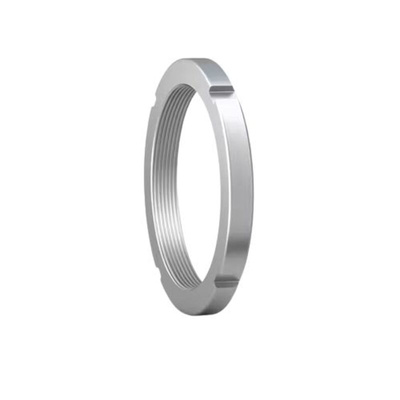

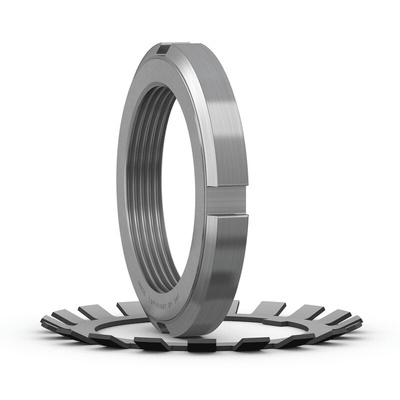

SKF Lock Nut 85x92x12mm, KM 14

SKF Bearing Assembly, Lock Nut Type, 70mm ID, 92mm OD, 230g Weight - KM 14

Ensure your rotating component stays put with this bearing assembly from SKF. It's a lock nut that locates your bearing and stops it from slipping along the shaft. The unit weighs just 230g, so it adds minimal strain to your equipment. Thanks to the pre-machined, equally-spaced slots, you can easily tighten and loosen the part with just a spanner. A metric thread lets you fit and remove the piece without a hassle. At just 12mm wide, it takes up minimal space in your system

Features & Benefits

• M70x2 thread is widely compatible with standard fittings
• 92mm outer diameter means it's an easy fit in confined spaces

Applications

• Railway applications
• Aerospace systems
• Automated conveyor lines
• Medical imaging equipment

Can I use this lock nut in heavy-duty applications?

Yes, it has an axial static load-carrying capacity of 118kN, meaning it's a robust choice that supports a bearing in heavy-duty installations.

Can I reuse this lock nut?

Yes, if it's undamaged after removal, you can reuse it for another assembly – just get a new washer.

Datasheet - KM 14
