SKF Lock Nut 24x28x5mm For Use With Bearing, KM 3

SKF Bearing Assembly, Lock Nut Type, M17x1 Thread, 17mm ID, 28mm OD - KM 3

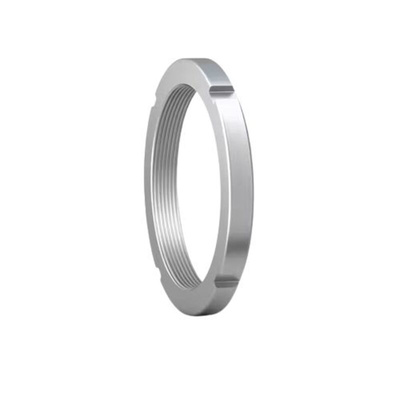

Seal the deal between your rotating component and a machine shaft using this bearing assembly from SKF. It's a lock nut designed to firmly locate a bearing on a shaft, preventing it from slipping out of place. There are four equally spaced slots around the circumference that let you slip in a spanner to tighten it. To fully round out your bearing assembly, secure this nut with a lock washer. For easy compatibility, it works with lock washers from the MB and MBL range (such as 237-2231).

Features & Benefits

• Axial static load-carrying capacity of 19.6kN to withstand heavy loads without deforming
• Threaded design for convenient installation
• Light weight of 14g for minimal strain on the shaft

Applications

• Printing presses
• Food production and packaging
• Transmission systems

How does a lock washer work?

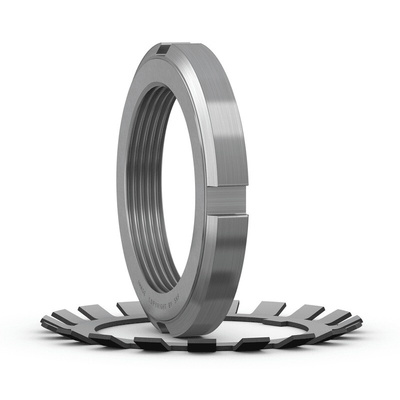

A lock washer is used to bolt the lock nut into position. Its split design includes tabs that press securely into the slots on the outside of the nut.

Can I reuse this lock nut?

Yes, you can reuse this lock nut, so it's a sustainable choice. It's important to note that you must use a new lock washer when re-installing it.

Datasheet - KM 3

Catalogue - Rolling Bearings
