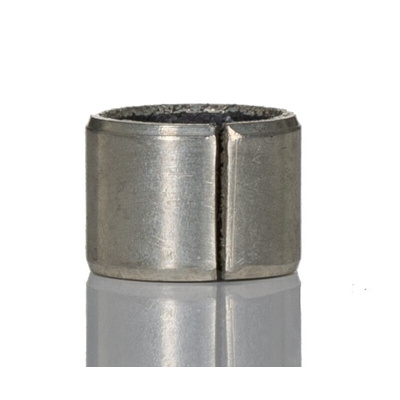

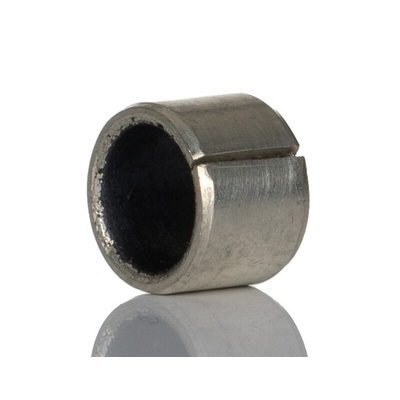

SKF PCM 060806 E 6mm Bore Plain Bearing, 9kN Radial Load Rating, 8mm O.D

SKF Plain Bearing, PTFE Composite Body, 9kN Static Load Rating, 6mm Bore, 8mm OD - PCM 060806 E

Keep your material handling process moving in the right direction with this plain bearing from SKF. It handles static loads up to 9kN, so you can use it for tasks such as supporting pallets. As its walls have a thickness of just 2mm, the product slots neatly into busy systems where there's not much clearance room. Straightforward mechanical mounting makes quick work of sliding it onto a shaft. Thanks to this bearing's self-lubricating body, there's no need to apply grease, so you can strike maintenance off your to-do list.

Features & Benefits

• Tin-plated steel backing provides effective corrosion resistance in damp settings
• Tolerates sliding up to 2m/s, cutting the risk of faults from movement
• Safe for use in extreme temperatures ranging from -200°C to +250°C

Applications

• Chemical processing
• Industrial robotics
• Packaging industry
• Metalworking

How does operating friction affect my application's equipment?

Operating friction generates heat and results in vibration, as well as rattling at high speeds. The result is heavy mechanical wear. This plain bearing's smooth PTFE contact layer minimises running friction, so you can trust it to deliver a long service life.

Datasheet - PCM 060806 E

Catalogue - Bushings, Thrust Washers and Strips
