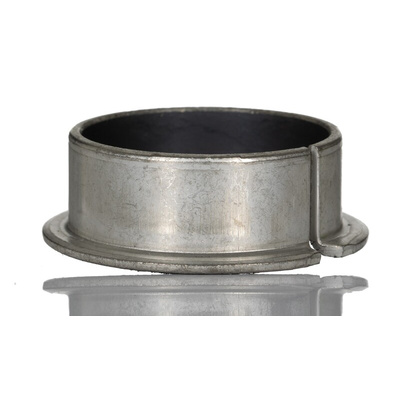

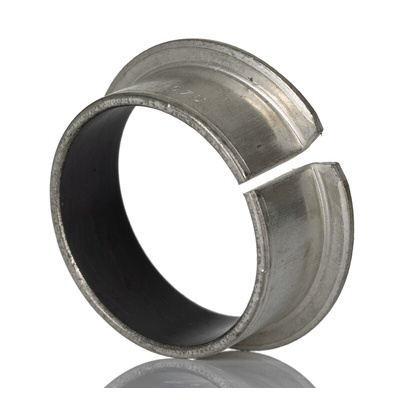

SKF PCMF 353916 E 35mm Bore Plain Bearing, 104000N Axial Load Rating, 110kN Radial Load Rating, 39mm O.D

SKF Plain Bearing, Bushing Type, 2mm Flange Width, 35mm ID, 39mm OD - PCMF 353916 E

Comfortably mount equipment and align parts with this plain bearing from SKF. It slips onto a shaft to support equipment moving at high speeds under heavy loads, so it's a reliable option for use in vehicles. The small but mighty unit handles 35.5kN dynamic and 110kN static forces in radial directions to suit heavy-duty systems. Thanks to the flange lip, this bearing also stands up to a steady pressure of 33.5kN and an active one of 104kN from the axial direction. This means it makes quick work of lifting and lowering components.

Features & Benefits

• Performs in extreme environments thanks to its wide operating temperature range of -200°C to +250°C
• Light weight of 35g won't put strain on a shaft
• Low 0.03μ friction coefficient indicates it slides easily without lubrication

Applications

• Oil and gas sector
• Construction projects
• Marine industry
• Manufacturing facilities

What material is this plain bearing made from?

The product is made of a PTFE composite, which has a very low friction coefficient. The material also holds up in high temperatures and shrugs off chemicals and solvents, so you can use it in contaminated settings.

Datasheet - PCMF 353916 E

Catalogue - Bushings, Thrust Washers and Strips
