7000006228, 3M 20A Inline Fuse Holder for 19mm Fuse, 32V

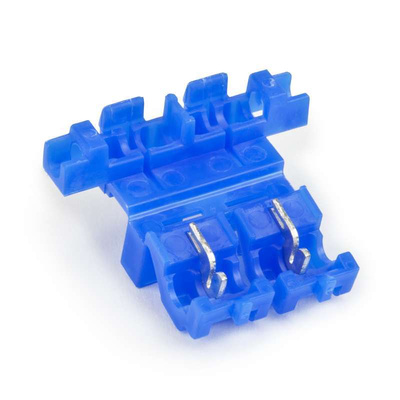

3M Inline Fuse Holder, 32V Max Voltage, Self-Stripping - Scotchlok Series - 7000006228

Mounting a fuse directly onto cables in motor vehicle applications? Keep your setup safe with this inline fuse holder from 3M. It lets you install blade-type fuses between power sources and devices, so it's handy for protecting automotive equipment against damaging voltage or current faults. Tin-plated copper alloy contacts offer high conductivity and corrosion resistance, so you can rest assured this component combines strong electrical performance and durability. The self-stripping design takes the hard work out of cable prepping, as you just insert your wire and close the holder.

Features & Benefits

• Holder's PP body insulates to protect against electric shocks
• Handles temperatures up to +105°C for use in harsh environments
• Colour-coded blue for quick identification of wire size

Applications

• Process control
• Automotive manufacture
• Railway applications

The 3M™ Scotchlok™ self stripping in line blade type fuse holder 972-A is used to install a blade type automotive fuse between power source and device.

What wire sizes suit this holder?

Connection type wire Connector style insulation displacement Fastener orientation female Insulation material polypropylene Maximum operating temperature 105 degree Celsius Maximum recommended voltage rating 600 V Product colour blue RoHS 2011/65/EU Compliant RoHS EU Comments: RoHS 2011/65/EU compliant without exemption Terminal type fuse

This versatile component accepts wires up to 3.5mm in diameter, so it handles AWG sizes 18 to 14.
