MDUB32-100DMZ, SMC Pneumatic Cylinder - 32mm Bore, 100mm Stroke, MU Series, Double Acting

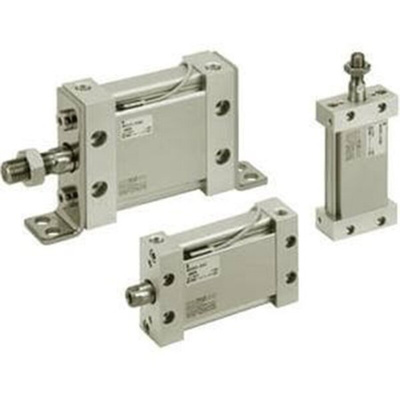

The SMC MU plate single rod, double acting, cylinder, with its elliptical design, provide a low profile while maintaining force output. The cylinder can eliminate the need for higher operating pressures that may be required for typical flat cylinder. The oval piston shape also provide an intrinsic non-rotating function without having to use a rod with flats, offering increased bearing and seal life.

Possible to mount without brackets
Auto switch mounting grooves prevent projection of auto switches
Auto switches can be mounted in 4 directions

Datasheet - MDUB32-100DMZ
