43025-1400, Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 14 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

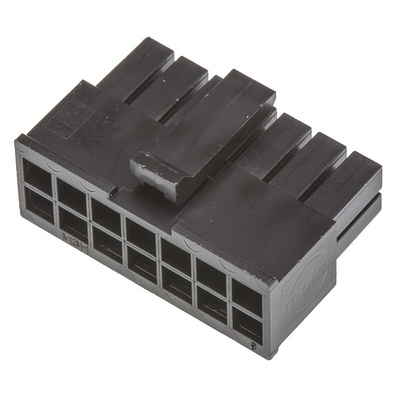

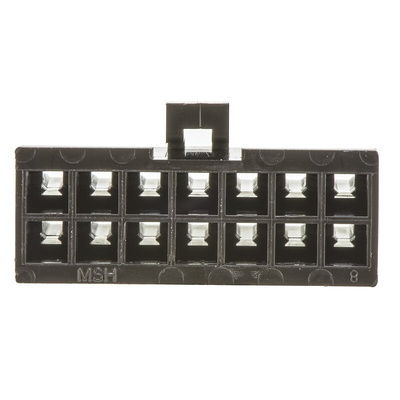

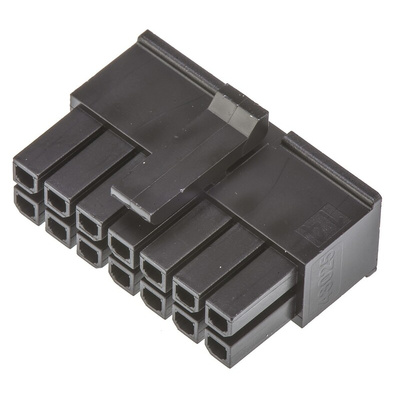

Molex Female Connector Housing, 14 Way, 2 Rows - Micro-Fit 3.0 Series - 43025-1400

Use this female connector housing from Molex when mounting connectors to a printed circuit board (PCB). The robust plastic fitting helps protect both the connection and the connector from dust, moisture and other environmental contaminants. Its positive locking system ensures the connector stays firmly in place and joins are reliable. The unit is also fully polarised to prevent misalignment and mismating. It can accommodate 14 circuits in double rows to help keep your setup organised.

Features & Benefits

• Straight body orientation and 14mm depth for easy placement of contacts
• Constructed of PET (polyethylene terephthalate), a strong and lightweight plastic for extra toughness
• Mounts directly onto cables for easy installation

Applications

• Security systems
• Industrial automation
• Hydraulics and energy production
• Lighting control systems

What type of connectors will this receptacle fit?

This component is part of Molex's Micro-Fit 3.0 series and will accommodate contacts in the same series.

As this unit is made of plastic, is there a risk of toxic fumes if it burns?

While the housing is produced from a strong plastic, it's been rated as low halogen, so toxic emissions in the case of fire are minimal.
