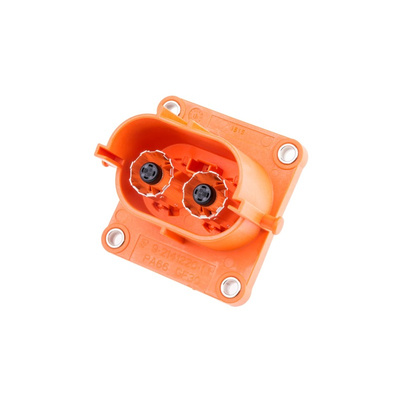

The TE - Automotive touch-proof 2-3 position high current connector HVP800 and header are designed to meet WG 4.3.3, LV215-1 specifications, for a metric wire size range from 16mm² up to 50mm². The sealed connector system (optional with a 90deg or 180deg cable outlet) incorporates two or three (2-3pos) 8mm power contacts and an integrated High Voltage Interlock (HVIL) System.
Ambient Temperature ranges from -40 to 140°C
Insulation resistance at 1kVDC greater then 200MΩ
Four different keying or polarizing configurations
360° conductive EMI shields
