RS PRO 5A Inline Fuse Holder for 5x20mm Fuse, 250V

RS PRO 5A Inline Fuse Holder

RS PRO is proud to introduce a high-quality Inline fuse holder. This fuse holder work in conjunction with a 5A fuse cartridge and together is designed to be a sacrificial component in electrical and electronic applications. The primary purpose of a fuse is to ultimately isolate circuitry or components from being damaged or destroyed in the event of an electrical surge.

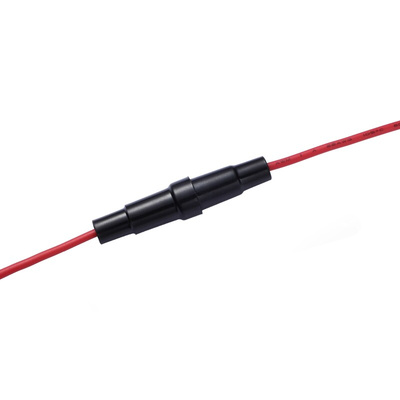

Upon inspection the fuse holder has a 100 mm 1015 20 AWG wire leads on either side, nylon housing that interlocks and encapsulates a 5A fuse keeping it secure and protected from splashes and debris. The RS PRO fuse holder is versatile and commonly found in automotive, audio & video applications.

Features and Benefits

• Robust and reliable


• Compact design


• Manufactured from high-quality materials


• Quick and easy to connect


• Accommodates 5 x 20 mm tube fuses

Specifications

• Inline fuse holder


• 5A, 250V


• Material: Nylon and Brass


• 142 mm 1015 20 AWG wire leads – Red


• Ambient Temp: -40 °C to +80° C

The RS Pro fuse holder is compatible 5X 20mm tube fuse. It has maximum current rating are 5 amperes at 250V. The wire is 1015 20AWG red , nominal OD is 2.5mm and lead pull test will withstand 10lb. It has ambient temperature is -40℃ to +80 ℃.

RS PRO Inline Fuse Holder Variant – Available Separately

• RS PRO 5A Inline Fuse Holder, 20 AWG - RS Stock no: 237-5258


• RS PRO 10A Inline Fuse Holder, 18 AWG - RS Stock no: 237-5259

Applications

• Power Applications


• Wiring looms


• Electronics


• Motorbikes


• Automotive


• Audio & Video

Note

Warning: If use above 32V, Power must be turn off when changing the fuse.

This product is in pack of 10.
