RS PRO 10A Inline Fuse Holder for 5x20mm Fuse, 250V

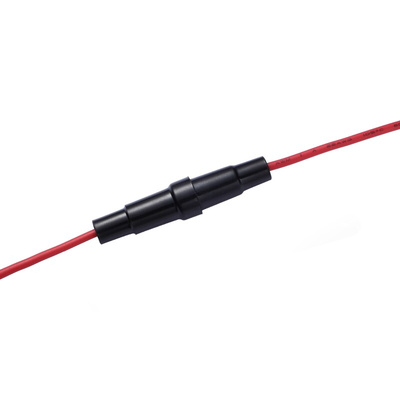

RS PRO 10A Inline Fuse Holder

RS PRO is proud to introduce a high-quality Inline fuse holder. This fuse holder work in conjunction with a 10A fuse cartridge and together is designed to be a sacrificial component in electrical and electronic applications. The primary purpose of a fuse is to ultimately isolate circuitry or components from being damaged or destroyed in the event of an electrical surge.
Upon inspection the fuse holder has a 142 mm 1015 18 AWG wire leads on either side, nylon housing that interlocks and encapsulates a 5A fuse keeping it secure and protected from splashes and debris. The RS PRO fuse holder is versatile and commonly found in automotive, audio & video applications.

Features and Benefits

• Robust and reliable


• Compact design


• Manufactured from high-quality materials


• Quick and easy to connect


• Accommodates 5 x 20 mm tube fuses

Specifications

• Inline fuse holder


• 5A, 250V


• Material: Nylon and Brass


• 142 mm 1015 18 AWG wire leads – Red


• Ambient Temp: -40 °C to +80° C

The RS Pro fuse holder has current rating 10A at 250V and it is compatible fuses 5X 20mm tube fuse. It has ambient temperature is -40℃ to +80℃. The wire is 1015 18AWG red , nominal OD is 2.8mm.

RS PRO Inline Fuse Holder Variant – Available Separately

Material black nylon and brass
Applicable 5X20MM tube fuse

Applications

• Power Applications


• Wiring looms


• Electronics


• Motorbikes


• Automotive


• Audio & Video

Note

Warning: If use above 32V, Power must be turn off when changing the fuse.
