V2D621R-2MSFFB5, Sick 330 mA Fixed Cable Bar code reader, 12 → 24 V

Overview

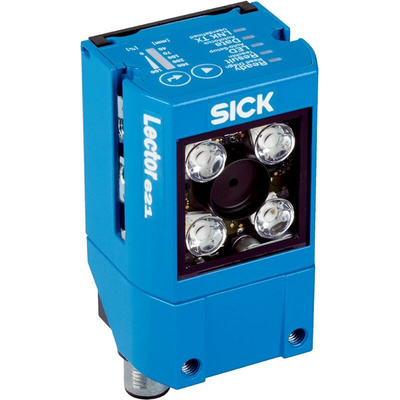

The Lector62x is a compact image-based code reader for the reliable detection of 1D, 2D, and stacked codes as well as plain text. Its high-performance DPM decoder can read even lasered or dot-peened codes perfectly – even in the case of low contrast levels, contamination, or poor code quality. Thanks to the powerful illumination concept with bi-color LEDs, the Lector62x is particularly immune to ambient light. It ensures stable reading even in changing light conditions. The compact housing with swivel connector makes it the ideal code reader for production lines where space is tight.

At a glance

Intelligent decoding algorithms and high-performance DPM decoder
Immune to ambient light
Powerful LEDs in red, blue, infrared
Flexible optical accessories such as polarizing filter or dome attachment
Compact housing with swivel connector
Setup wizard with auto focus, aiming laser, green feedback LED
microSD card for storing images and backup copies of parameters
Innovative data handling with comprehensive sorting, filtering, and output formatting functions

Your Benefits

Intelligent decoding algorithms for maximum reading performance and high throughput, even with highly reflective or contaminated codes
Variable illumination concept ensures stable reading even in changing light conditions
Maximum reliability on shiny or reflective surfaces thanks to flexible optical accessories
Compact design and swivel connector for easy integration even if installation space is tight
Automated setup wizard with auto focus and aiming laser makes commissioning faster and more cost-effective
Short downtimes when devices are replaced thanks to parameter backup on MicroSD card
Programming is quick and easy since read results can be transmitted to the control system in the desired format

Applications

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
