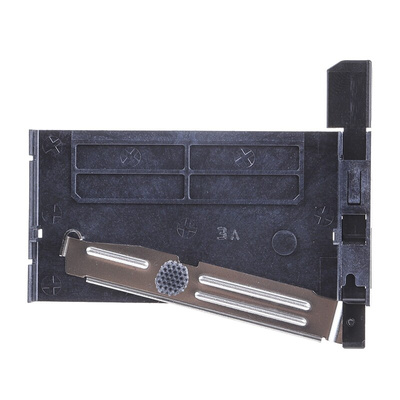

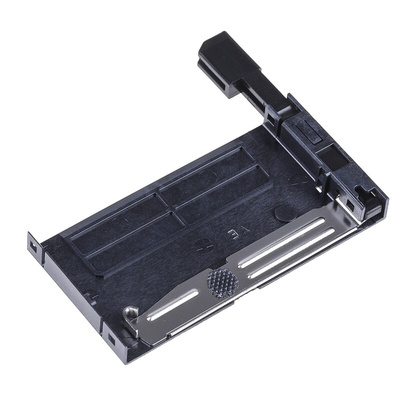

D7E50-7316-03, 3M Compact Flash Memory Card Connector, Разъем

3M CF Card Header, 7E50 Series, Socket & Guide For Compact Flash ™

From 3M, this memory card holder socket mounts to 3M’s CompactFlash™ Type II, Long Guide, Surface Mount Headers. It is completely compatible with the PCMCIA standard from an electrical point of view. A guide is available to make inserting and extracting the board easier, in the same way as a PCMCIA header.

• 237-6090 is a Compact Flash Memory Card Connector
• 542-7747 is a Compatible guide for the CF Memory Card Connector

Features and Benefits

• Mounts to 3M’s CompactFlash™ Type II, Long Guide, Surface Mount Headers
• Modular "snap on" design and multiple button types for design flexibility
• Can be used with either top or bottom mount (normal or inverse polarization) headers
• Latching retainer is used with normal polarization 3M's Compact Flash™ • Type II headersSocket for a memory board in Compact Flash format i.e. four times smaller than that of a PCMCIA board

Applications

This 3M CF Card Reader can be pre-assembled to connector to reduce handling and assembly time. It meets CFA standards for known compatibility and reliability.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

Note

Dimensions of the flash board (mm): 36 x 43 x 3.3

Memory Card Connectors

Memory Card Connectors (50/68 pos)
