932841100 CM 06 EA 14S-5 S, Hirschmann 5 Way Cable Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 14, Screw Coupling,, Разъем

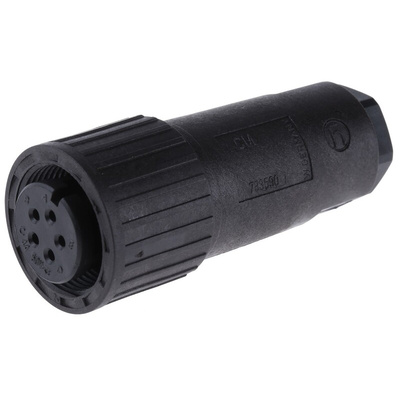

Belden Hirschmann MIL Spec Circular Connector, Straight Body, 10A Current Rating - CA Series - 932841100 CM 06 EA 14S-5 S

For rock-solid connections in even the most demanding environments, pick this MIL spec circular connector from Belden Hirschmann. Built-in strain relief prevents cable damage, while the screw coupling method locks down a secure electrical connection. As a 5-way female connector, it's widely compatible with automotive and industrial equipment. Thanks to tough housing made of impact-resistant plastic with fibreglass reinforcement, it can take more than the odd knock and keep going for the long haul.

Features & Benefits

• Voltage rating of 50V AC is well-suited to low-power applications
• IP67 rated for protection against dust and high-pressure water jets
• Standard PG11 cable gland for secure connections
• Durable NBR O-ring resists fuels and other chemicals

Applications

• Automotive manufacturing
• Robotics control
• Transportation equipment

What temperatures can this connector handle?

It has a wide operating temperature range between -40°C and +90°C, so you can use it in challenging conditions.

Hirschmann CA series connectors – Protection Class IP67

Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor

CMSERIES - Data sheet

CM 06 EA 14S-5 S
