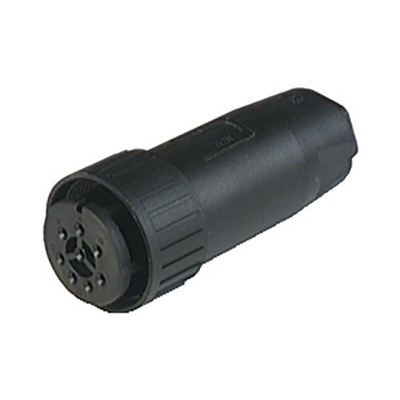

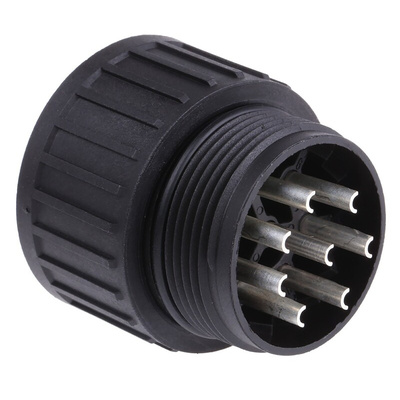

932842100 CM 06 EA 20-7 S, Hirschmann, CM 8 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 20, Screw Coupling,, Разъем

CM Cable Sockets and Panel Plugs

These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.

Belden Hirschmann MIL Spec Circular Connector Plug, 10A Current Rating, 8 Cores - CM Series - 932842100 CM 06 EA 20-7 S

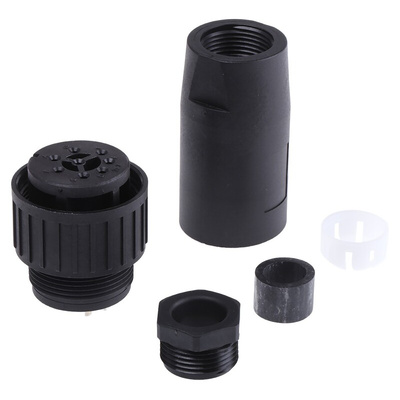

Transmit power and data signals to equipment in harsh settings with this military-grade circular connector from Belden's Hirschmann range. Thanks to an 8-core construction, the unit supports multi-signal transmission in your control and automation systems, eliminating the need for excess cabling. An integrated clamping cage means this connector offers reliable strain relief to protect your cables from damage due to twisting and prolong their lifespan.

Features & Benefits

• IP67 rating indicates protection from dust and immersion in water
• Can be used with both AC and DC supply voltages for versatility
• Screw coupling nuts prevent accidental disconnection for a secure link

Applications

• Oil and gas plants
• Chemical processing facilities

Is this connector flame-retardant?

Yes, this connector's fibreglass-reinforced plastic housing stops burning in a short time in the event of a fire, making it useful for volatile settings.

Hirschmann CA series connectors – Protection Class IP67

Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor

CMSERIES - Data sheet

CM 06 EA 20-7 S
