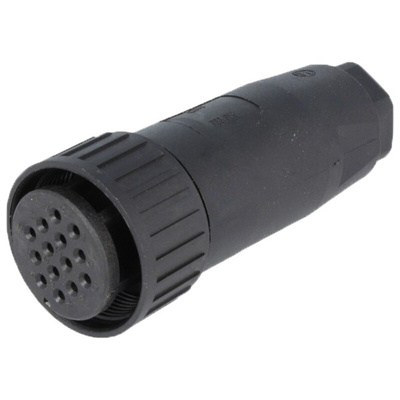

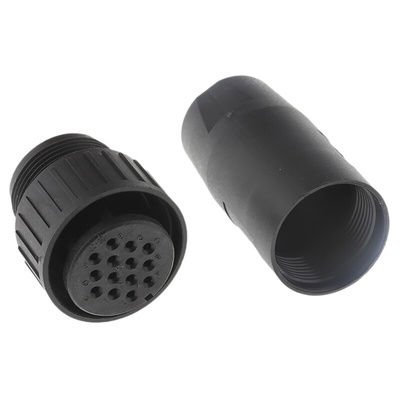

933067100 CM 06 EA 20-27 S, Hirschmann, CM 14 Way Cable Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 20, Screw, Разъем

CM Cable Sockets and Panel Plugs

These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.

Belden Hirschmann Cable-Mount MIL-Spec Circular Connector, 5A Current Rating - CM Series - 933067100 CM 06 EA 20-27 S

Looking for a rugged connector you can use in the toughest environments? This high-performance Belden MIL-spec circular connector is specifically designed to endure vibrations and resist corrosion. As a result, it provides secure and reliable connections between components. Glass-fibre reinforced PA material gives this product excellent strength and durability. Screw coupling ensures dependable mating so the connection remains intact for optimal signal transfer when equipment is running.

Features & Benefits

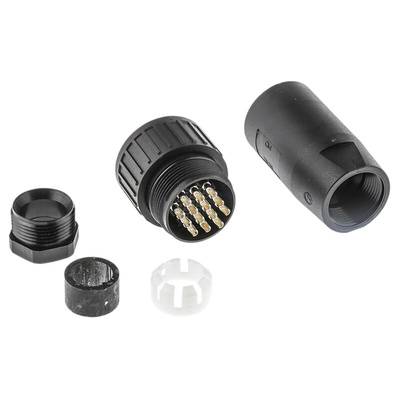

• Straight cable socket and clamping cage provide strain relief to protect wires from damage and prevent unnecessary downtime
• Broad operating temperature range from -40°C to +90°C enables use in heavy-duty indoor and outdoor environments
• IP67 (ingress protection) rating indicates internal contacts and wires are protected from water and dust

Applications

• Automotive industry
• Aerospace applications
• Turbines in high-wind and high-humidity settings

What does 'MIL-spec' mean?

'MIL-spec' is short for military specification. It means that a component meets military standards and is designed to withstand and function in harsh ambient conditions.

Does this connector transfer reliable signals?

Yes. The silver contacts have excellent conductivity for optimal signal relays.

Hirschmann CA series connectors – Protection Class IP67

Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor

CMSERIES - Data sheet

CM 06 EA 20-27 S
