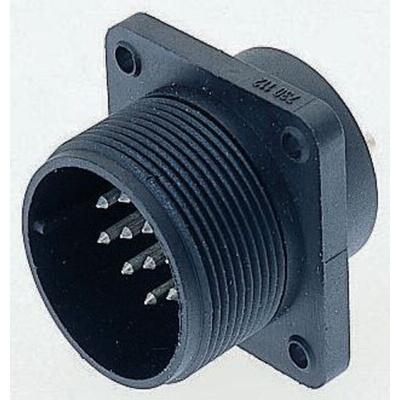

932843100 CM 02 E 14S-5 P, Hirschmann, CM 5 Way Panel Mount MIL Spec Circular Connector, Pin Contacts,Shell Size 14, Screw Coupling, MIL-DTL-5015, Разъем

Belden Hirschmann MIL Spec Circular Connector, 1mm² Maximum Conductor Size, Black Housing - CM Series - 932843100 CM 02 E 14S-5 P

Want to stay in control of your panel? Add this MIL spec circular connector from Belden Hirschmann to your setup. Thanks to four pre-drilled screw holes in the corners, it's easy to achieve a wobble-free fix on a support surface. Once you've fitted it, you can use it to hook up cables terminated with a female socket (such as 168-5618) in a jiffy to easily plug other elements into the system.

Features & Benefits

• IP67-rated, meaning it's dustproof and waterproof, so can be safely installed in contaminated environments
• Durable PA housing provides top-tier insulation to prevent electric shocks
• Performs reliably in demanding temperatures from -40°C to +90°C

Applications

• Control systems
• Manufacturing industry
• Production lines

Can I protect the connector when it's not in use?

Add a protective cap (237-7677) to seal the connector until you need to use it.

Hirschmann CA series connectors – Protection Class IP67

Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor

CMSERIES - Data sheet

CM 02 D 14S

CM 02 E 14S-2 P
