MLX90316KDC-BDG-100-RE, Melexis 3-Axis Surface Mount Position Sensor, SPI

The Melexis position sensor IC providing the absolute angular position of a small dipole magnet rotating above the device surface. This monolithic device senses, in a contactless fashion, the horizontal component of the applied magnetic flux density. This unique sensing principle applied to a rotary position sensor results into an impressive robustness of the angular position over the mechanical (air gap, off-axis) tolerances. The output transfer characteristic is fully programmable to match any specific requirement through end-of-line calibration. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals.

Absolute rotary position sensor IC
Simple & robust magnetic design
Programmable angular range up to 360 degrees
Programmable linear transfer characteristic
Selectable analog (ratio metric), PWM, serial protocol
10 bit angular thermal accuracy
40 bit ID number

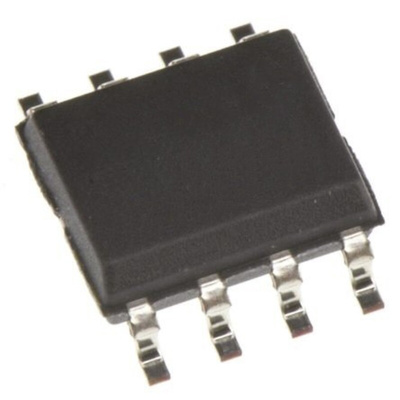

Single die – SOIC-8 package RoHS compliant

Datasheet - MLX90316KDC-BDG-100-RE
