933062100 CM 02 E 20-27 P, Hirschmann, CM 14 Way Panel Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 20, Screw Coupling,, Разъем

CM Cable Sockets and Panel Plugs

These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.

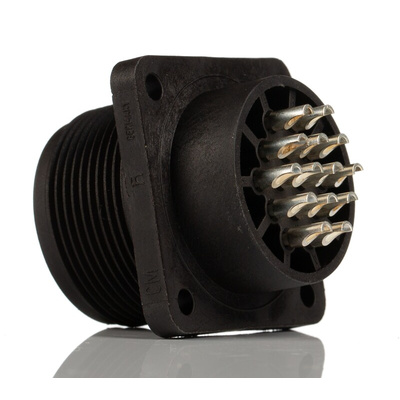

Belden Hirschmann MIL Spec Circular Connector, 14 Cores, 50V AC/DC Voltage Rating - CM Series - 933062100 CM 02 E 20-27 P

To make reliable electrical links in tough industrial environments, choose this military-grade connector from Belden's Hirschmann range. It's designed to be surface mounted on equipment panels and has four screw holes for quick and simple installation. The adapter's solder bucket lets you create a permanent connection with your equipment, which is useful in vibrating systems. Thanks to fibreglass-reinforced polyamide housing, this unit can withstand the mechanical impact that you'd expect in heavy-duty industrial environments.

Features & Benefits

• Wide operating temperature range of -40°C to +90°C for use in harsh conditions
• 50V AC/DC voltage rating for use in low-voltage applications
• IP67 rating indicates full protection from dust and immersion in up to 1m of water for 30 minutes

Applications

• Automotive industry
• Robotics and automation

What's the current rating of this connector?

This connector has a current rating of 10A, making it suitable for high-current applications.

Hirschmann CA series connectors – Protection Class IP67

Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
