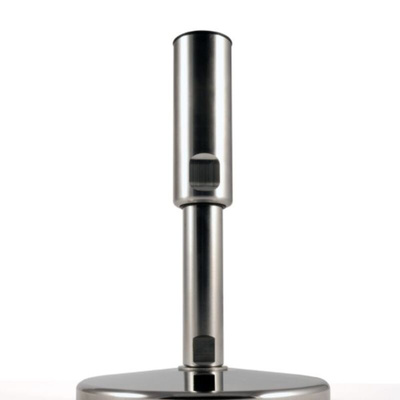

RS PRO M16 Stainless Steel Hygienic Adjustable Foot, 3000kg Static Load Capacity 5° Tilt Angle

RS PRO Stainless Steel Articulated Hygienic Adjustable Feet

From the trusted brand RS PRO, a range of height-adjustable feet mounts made from solid AISI 304 stainless steel polished base and an NBR 90 shore glued anti-slip pad. This range has a 5° articulated half-thread-less hygienic stem and a stainless-steel thread-covering sleeve, making it easy to clean. It has a top sleeve, mounted with a bottom internal and a top external black silicon gasket, which covers the remaining threaded part and seals all the possible cavities where otherwise dirt and debris would infiltrate.

What are adjustable feet used for?

Adjustable feet are a cost-effective way of levelling, supporting, and balancing structures on uneven surfaces. These foot mounts are used in multiple applications with the highest hygienic requirement such as food industry machinery, catering, and kitchens.

Features and Benefits

• Stainless steel


• Polished Base


• Height adjustable


• Levelling feet


• Vibration reduction and anti-slip properties


• Available in a wide variety of thread sizes and static load capacities


• 5° Tilt angle


• USDA Accepted

Thread Length, Thread Size Variants

• 125 mm, M16 mm, 2000 kg, RS stock no: 237-8163


• 150 mm, M16 mm, 3000 kg, RS stock no: 237-8160


• 150 mm, M20 mm, 3000 kg, RS stock no: 237-8161


• 150 mm, M24 mm, 3000 kg, RS stock no: 237-8162


• 150 mm, M24 mm, 4000 kg, RS stock no: 237-8159

Typical Applications

• Dairy and Meat Processing


• Hygienic Environments


• Food Processing

Why would you choose RS PRO for Adjustable Feet?

RS PRO is our own brand that offers you a wide range of high-quality adjustable feet to suit your applications. Our great value products give you more choice and are easily found via our improved ’Apply Filters’ option. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
