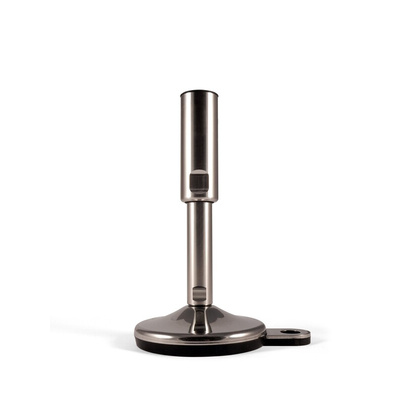

RS PRO M20 Stainless Steel Hygienic Adjustable Foot, 1500kg Static Load Capacity 10° Tilt Angle

RS PRO Stainless Steel Articulated Hygienic Adjustable Feet – Bolt Down

From the trusted brand RS PRO, a range of height-adjustable feet made from high-gloss polished AISI 304 stainless steel surface with a vulcanised NBR 85 shore rubber pad and a bolt-down base. This range has a 10° articulated half-thread-less hygienic stem and a stainless-steel thread-covering sleeve making them easy to clean. Mounted with an external top and internal bottom black silicone gasket to prevent dirt intrusion.

What are adjustable feet used for?

Adjustable feet are a cost-effective way of levelling, supporting, and balancing structures on uneven surfaces. These foot mounts are used in multiple applications with the highest hygienic requirement such as food industry machinery, catering, and kitchens.

Features and Benefits

• Stainless steel


• High gloss polished


• Adjustable


• Levelling feet


• Bolt down


• Vibration reduction and anti-slip properties


• Available in a wide variety of thread sizes and static load capacities


• 10° Tilt angle


• USDA Accepted

Thread Length, Thread Size Variants

• 125 mm, M16 mm, 700 kg, RS stock no: 237-8167


• 125 mm, M16 mm, 1000 kg, RS stock no: 237-8168


• 150 mm, M16 mm, 1000 kg, RS stock no: 237-8170


• 150 mm, M16 mm, 1500 kg, RS stock no: 237-8164


• 150 mm, M20 mm, 1500 kg, RS stock no: 237-8165


• 150 mm, M24 mm, 1500 kg, RS stock no: 237-8166

Typical Applications

• Dairy and Meat Processing


• Hygienic Environments


• Food Processing

Why would you choose RS PRO for Adjustable Feet?

RS PRO is our own brand that offers you a wide range of high-quality adjustable feet to suit your applications. Our great value products give you more choice and are easily found via our improved ’Apply Filters’ option. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
