RS PRO Male 2 Way Modular Battery Contact, Cable Mount, 200A, 600 V

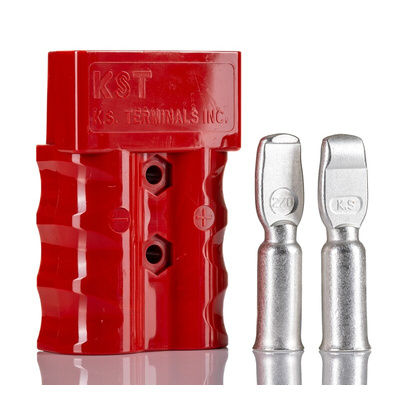

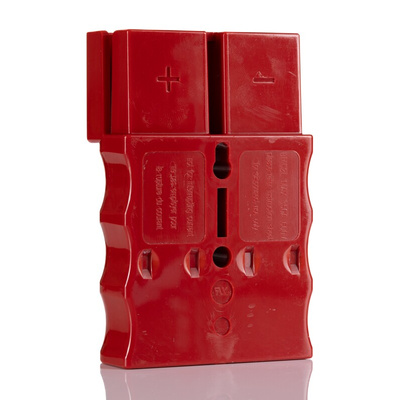

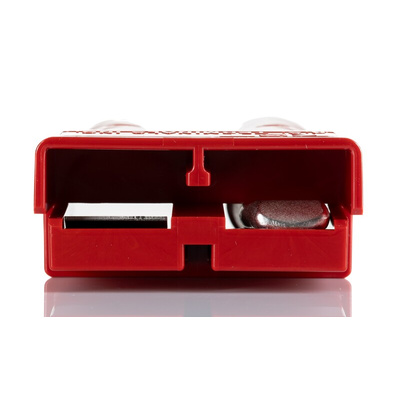

RS PRO Red Battery Modular Connector (BMC)

RS PRO Battery Modular Connectors (BMC) enable the enforcement of colour management systems and are designed to dramatically reduce accidental pairing increasing user safety using a combination of colour and design specifically formed to only mate with the same colour connector.

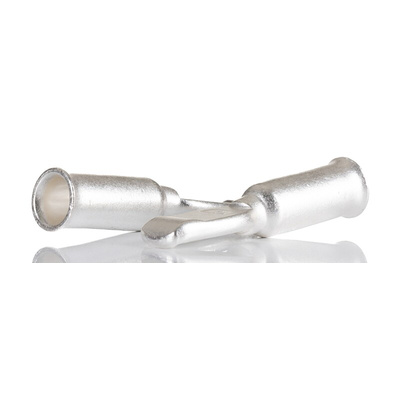

Robust Polycarbonate construction for strength and impact resistance with Silver Plated Copper contacts delivering excellent conductivity and increased connector life. With a high voltage resistance of 600 Volts continuous AC or DC operation, these battery connectors are ideal for a wide range of commercial applications.

Typical Applications:

• UPS Systems


• Telecommunication


• Forklift Trucks


• Electric Vehicles and Chargers

• 2 Pole Power Connector


• Housing Current Rating: 350 A / Contact Current Rating: 200 A


• Wire size: 70mm


• Operating Temp erature: -20 to +125 °C


• Dimensions (LxWxD): 108 x 69.8 x 33.3 mm

Approvals

UL, UL 94 V-0, RoHS, REACH
