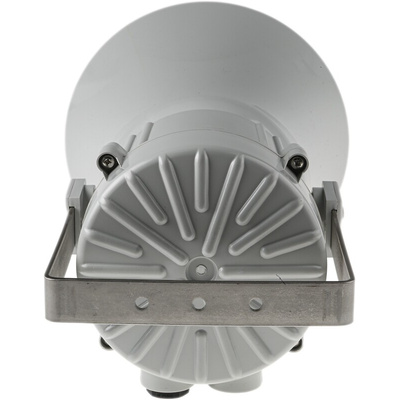

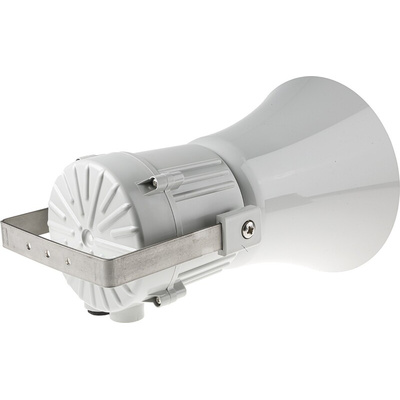

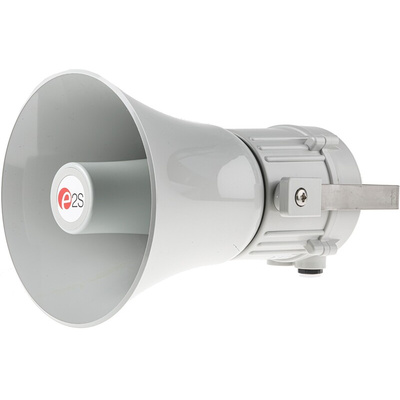

MA2FDC024BN1A1G, e2s MA121F Series Surface Mount Electronic Sounder, 10 → 30 V dc, 126dB at 1 m, IP67, DC, 32-Tone

e2s High Output Sounder

The e2s high output sounder is a 32-tone alarm with a sound output of 126dB(A) at a distance of up to 1m. It is a 3 stage alarm with volume control. It works on a supply voltage of 10VDC to 30VDC. The sounder has a grey body colour and is surface mount.

Features and Benefits

Automatic synchronisation on multi-sounder system
Continuously rated
Stainless steel fixings
Unit can be mounted using external lugs or internal BESA compatible fixing positions
Duplicate cable terminations (in and out for daisy-chain installations)
Tropicalisation available on request
Available with custom tone configurations and frequencies
’Programmable’ version available
45 alarm tones
4 remotely selectable stages
Any tone can be assigned to Any stage
User configurable continuous frequency tone

Applications

Fire alarm
Security
Process Control

Certifications

VdS approved to EN54-3 (CPD 89/106/EEC)
UKOOA/PFEER compliant alarm tones
UL approved
GOST-R approved
IP67 rated

MA112 / MA121 Marine Sounders Instruction Manual

MA121 Datasheet
