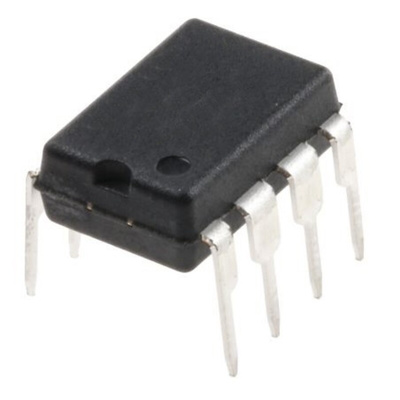

Renesas Electronics ICL7667CPAZ 2, 200 mA, 15V 8-Pin, PDIP

The Renesas Electronics ICL7667 is a dual monolithic high-speed driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its high speed and current output enable it to drive large capacitive loads with high slew rates and low propagation delays. The ICL7667’s inputs are TTL compatible and can be directly driven by common pulse-width modulation control ICs.

Fast rise and fall times
30ns with 1000pF load
Wide 15V supply voltage range
Low power consumption
4mW with inputs low
20mW with inputs high
TTL/CMOS input compatible power driver
Direct interface with common PWM control Ics

Datasheet - ICL7667CPAZ
