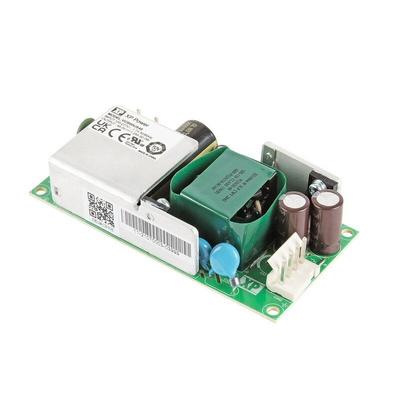

XP Power AC-DC Power Supply, VCB60US48, 48V dc, 1.25A, 60W, 1 Output, 90 → 305V ac Input Voltage

The XP Power VCB60 is a series of open frame AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, this series benefit system designers with easy integration into a wide range of applications. A wide input range of 90-305VAC and approval to overvoltage category III (OVC III) eases installation in building wiring systems.

Output voltage 48.0VDC
Output power 60W
Output current 1.25A
60W convection cooled, open frame
Low 1.01 inch profile
Immunity to the latest EN55035 standard
Typically 90% efficiency
-10°C to +60°C operating ambient temperature

Datasheet - VCB60US48
