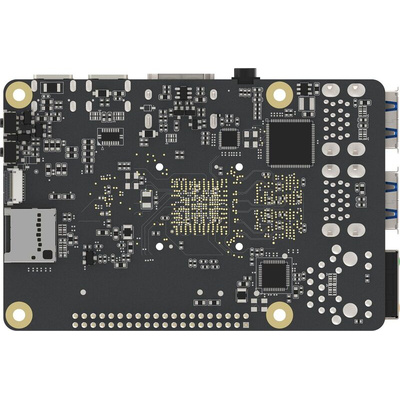

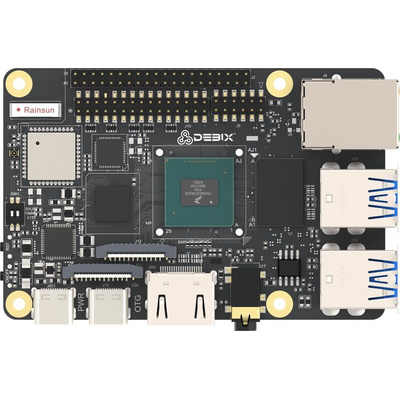

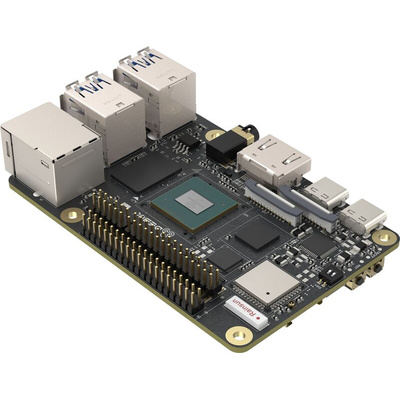

EMB-iMX8MP-02, Polyhex DEBIX Model A Board

DEBIX Model A is a powerful and reliable industrial single-board computer based on a quad-core i.MX 8M Plus processor with a wide temperature range from -40 to +105, perfect for extreme weather conditions. Launched by OKdo Technology and Polyhex Technology, this new-to-market DEBIX Model A board is ideal for various industrial applications, IoT, multimedia, smart cities, and more. The board comes with real-time control, 2.3TOPS NPU, rich I/O ports and a complete software development environment.

Key benefits of DEBIX Model A

Powerful Quad-core i.MX 8M Plus processor
Integrated neural processing unit (NPU) that delivers up to 2.3 TOPS
Perfect for industry 4.0, IoTs, smart cities and multimedia applications
Wide CPU temperature range of -40℃ to 105℃
Works stably in extreme environments
Flexible use with I/O and LoRa add-on boards
Video encoding & decoding capabilities
Capable of performing sophisticated processing tasks due to its quad-core ARM Cortex-A53 CPU up to 1.8GHz and 2GB/4GB/6GB LPDDR4.

Key applications

Machine Learning
Industrial Automation
Smart Home
Smart Building
Smart City
Multimedia
Consumer & Pro Audio/Voice Systems

Technical Specifications

CPU: NXP i.MX 8M Plus (default), 4 x Cortex-A53, integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional)
Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0, high-speed USB 3.0 and PCIe support connection
Video: 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities
Memory: 2GB LPDDR4 (4GB/6GB optional)
Storage: (default) micro-SD card (Onboard 8GB/16GB/32GB/64GB/128GB eMMC optional)
Operating System: Android 11, Yocto, Ubuntu
Power: DC 5V/3A Type-C power supply
Dimensions: 85.0 x 56.0mm
Operating Temperature: -40℃ to 105℃ CPU temperature

Datasheet 2380448
