RS PRO Gateway Smart Hub

RS PRO Gateway Smart Hub

Use this Gateway Smart Hub from RS PRO to connect your smart devices and create the perfect smart home. The RS PRO ZigBee Wireless Gateway Smart Hub is the link between the control device via the internet and the devices within a smart home. Communicates with all other smart devices within the home via the ZigBee Protocol. It is controlled by smart devices via the TUYA platform. The TUYA platform incorporates 3rd party voice services including Amazon Alexa/Echo Dot, Google Home, Samsung SmartThings & IFTTT.

Installation

The gateway hub needs to be positioned in a suitable location close to a power supply socket and within range of a Wi-Fi router. The hub will also need to be within range of the Zigbee product it is controlling. Connect hub to an ’unrestricted’ 2.4GHz Wi-Fi broadband connection when initially linking and setting up.

Features and Benefits

• Smart Hub


• Micro-USB


• Reset button


• Red Wi-Fi connected LED


• Blue Gateway connected LED


• Zigbee Gateway allows control of connected Zigbee products via smart devices (phone or tablet) via the Tuya App from anywhere.

Tuya Smart Life App

• The Tuya Smart Life App provides control functions such as timers, schedules and other smart functions.


• The Tuya App is available free of charge for both Apple and Android smart devices from Apple AppStore or Google Play.

Specification

• Protocol: Zigbee 2.4GHz, Wi-Fi 2.4GHz


• Range: Open Field >60 m


• Power Supply: 5V 1A micro USB via 13A power adaptor


• Voltage: 220 V- 240 V 50Hz


• IP Rating: IP20


• Operating Temperature -10 °C - +40 °C

Compatible RS PRO Smart Products

• RS PRO LED Drivers, RS stock no: 238-0600, 238-0602 and 238-0603


• RS PRO Smart Switch Module, RS Stock no: 238-0604


• RS PRO Smart Dimmer Module RS Stock no: 238-0605

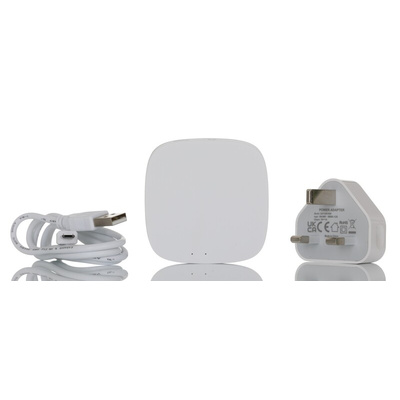

What do you get?

• White Gateway Smart Hub


• Power adaptor


• Instructions

Application

• Smart Home


• Lighting Control

RS PRO Datasheet

RS PRO Flyer

RS PRO Guide
