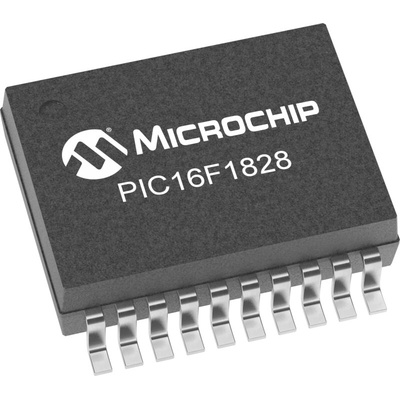

Microchip PIC16F1828T-I/SS PIC Microcontroller, PIC16, 20-Pin SSOP

The Microchip microcontrollers PIC16F range are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F1824/1828 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 7 Kbytes program memory, 256 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy.

Operating speed 35 MHz oscillator clock cycle
125ns instruction cycle
Sleep mode 20 nA
Watchdog timer 200nA
Operating current48uA/MHz
4X Phase Lock Loop (PLL)
Operating voltage 1.8V - 5.5V
Programmable code protection
5 bit rail-to-rail resistive DAC with positive and negative reference selection

Datasheet - PIC16F1828T-I/SS
