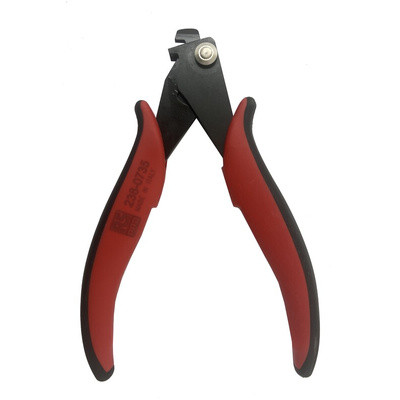

RS PRO Separator Plier, 147 mm Overall

RS PRO Carbon Steel Separator Pliers

RS PRO is proud to introduce a range of carbon steel 147 mm length separator pliers. These high-quality hand tools have been subject to an anti-reflection phosphating surface treatment, ensuring an accurate view of the work being carried out. During construction the tools are joined with grounded holes and surfaces, thereby allowing precise movements. For comfort, the pliers exhibit excellent ergonomic principles with anti-slip bi-material dolphin handles thus guaranteeing a safe, light, and comfortable grip for the operator even when used constantly for many hours.

Why would you need Separator Pliers?

Separator pliers are also known as a de-paneling tools. They are commonly used on PCBs fabricated in arrays to de-panel or separate into the individually printed circuit board. A PCB separator plier is a manual hand tool designed to separate PCBs quickly, economically, and to safely achieve finished cut surfaces. Our range includes various sizes in blade thickness and cutting force capability.

Features and Benefits

• Carbon Steel


• Anti-reflection phosphating surface treatment


• Excellent ergonomic principles


• Anti-slip bi-material handles


• Lightweight and comfortable grip


• Angled


• Suitable for continuous use


• Designed to separate PCBs, removes tabs


• Leaves well-finished cut surfaces


• Laser marking

Specifications

• Blade thickness options: 1 mm to 2.5 mm


• Maximum PCB thickness 1.6 mm


• Minimum isthmus distance 11 mm


• Maximum cutting force options: 1 to 7 kg

RS PRO Carbon Steel Separator Pliers Variants

• Blade thickness: 1.0 mm, Max. Cutting force: 1 kg - RS Stock no: 238-0729


• Blade thickness: 1.5 mm, Max. Cutting force: 3 kg - RS Stock no: 238-0731


• Blade thickness: 1.8 mm, Max. Cutting force: 3 kg - RS Stock no: 238-0732


• Blade thickness: 2.0 mm, Max. Cutting force: 3 kg - RS Stock no: 238-0733


• Blade thickness: 2.3 mm, Max. Cutting force: 7 kg - RS Stock no: 238-0734


• Blade thickness: 2.4 mm, Max. Cutting force: 7 kg - RS Stock no: 238-0735


• Blade thickness: 2.5 mm, Max. Cutting force: 7 kg - RS Stock no: 238-0736

Applications

• PCB Fabrication


• PCB Arrays


• Electronic Servicing
