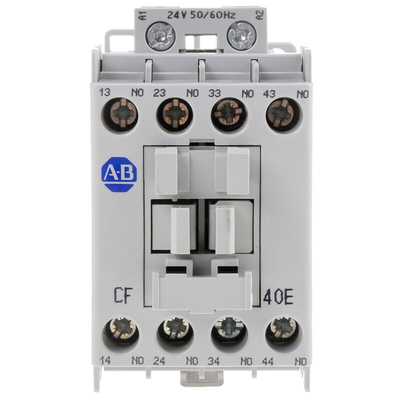

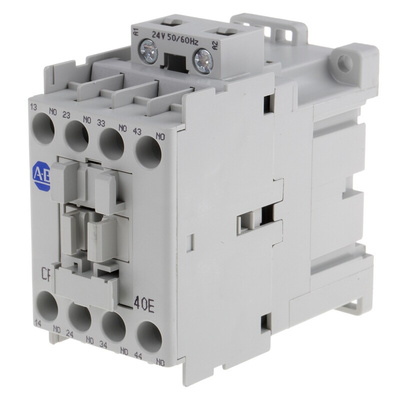

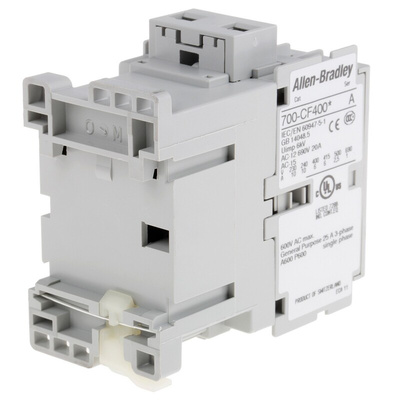

700-CF400KJ, Allen Bradley 700C Series Contactor, 24 V ac Coil, 4-Pole, 10 A, 4NO, 400 V ac, Контактор

Allen Bradley AC Control Relays 700-C Series

Ensure maximum protection for your motor control application with the 700C series of IEC Control Relays by Allen Bradley.

These devices are ideally suited for demanding industrial applications due to provided features such as timing options, extended contact life, and mechanically linked contacts. They use the same accessories as the 100-C contactors, enabling you to easily customise your motor control application. They also offer simple installation via DIN rail or surface mounting. The IEC design ensures that these control relays meet high international standards for quality and safety, and they also have IP2X finger protection.

Contact Rating: 25A (AC1)
Max. Rated Voltage: 690V
Dimensions: H 80.5mm, W 45mm, D 81mm

Features and Benefits:

• IEC industrial relays
• High contact reliability
• 4-…10 Poles
• Switch up to 690V AC and DC
• Mechanically linked contact performance per IEC 60947-5-1
• Electronic and Pneumatic Timing Modules
• Environmentally friendly materials
• Space-saving coil modules
• Gold plated, bifurcated version for low level switching applications

Certifications:

CCC Certified
CE Marked
cULus Listed — File No. E14840; Guide Nos. NKCR/NKCR7

Standards:

CSA C22.2 No. 14
EN/IEC 60947-1, -5-1
Meets the material restrictions for European Directive 2002/95/EC - EU-RoHS
UL 508

Contactors - Bulletin 100-M, 100-C, 104-C, 100S-C, 104S-C, CAB6, 100-G - Data Sheet
