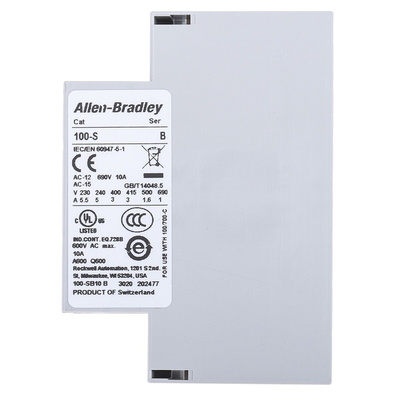

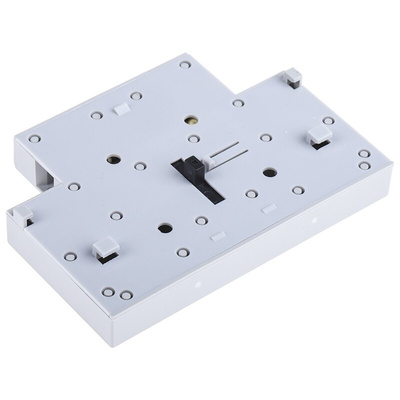

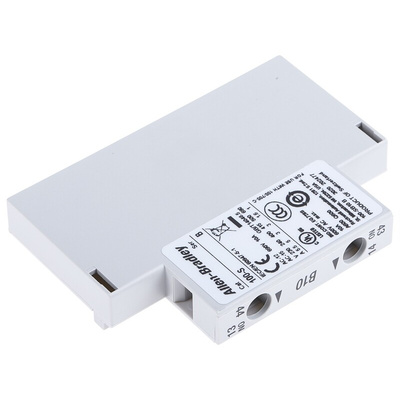

100-SB10, Allen Bradley Auxiliary Contact, 1 Contact, 1NO, Side Mount

MCS Auxiliary Contact Modules

10A rated (AC1)
Blocks per contactor 2 side + 1 top (max. 8 contacts)
Min. switching 17V 5mA (DIN 19240)

Allen Bradley Auxiliary Contact, SPST Configuration, 10A Current Rating - 100-SB10

Choose this auxiliary contact from Rockwell Automation's Allen Bradley range to supplement the function of your main contactor. It's compatible with Rockwell Automation's 100S series of safety contactors used for the protection of people and equipment in industrial environments. You can mount this user-friendly unit on either the right or left side of a contactor. Assembling it's easy, as there's no need for any tools. Screw terminals let you make secure and simple electrical connections that resist movement, so there's less need for maintenance.

• Current rating of 10A, so suitable for higher-powered systems
• No additional panel space needed, thanks to direct mounting to a contactor
• Electronically compatible contacts minimise the risk of faults and help to support machine availability
• For safety, positively guided contacts ensure contacts can never be closed at the same time

Standards and Certifications

• UL
• IEC

How many auxiliary contacts can I connect to this 100S series contact block?

To build a versatile system, you can connect up to 8 auxiliary contacts to a device from Rockwell Automation's 100S series.

Contactors - Bulletin 100-M, 100-C, 104-C, 100S-C, 104S-C, CAB6, 100-G - Data Sheet

Catalogue - Rapid Components Catalogue For EMEA
