100-MCA02, Allen Bradley Mechanical Interlock for use with 100C Series

MCS Mechanical Interlocks

These may be used with either contactor modules (100-C Series) or control relay modules (700-CF Series)
The interlock may be used on any size of modules and can be used to link two different size modules

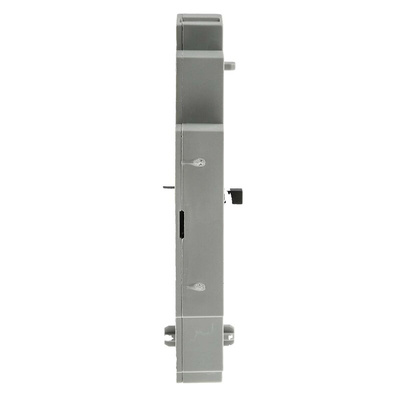

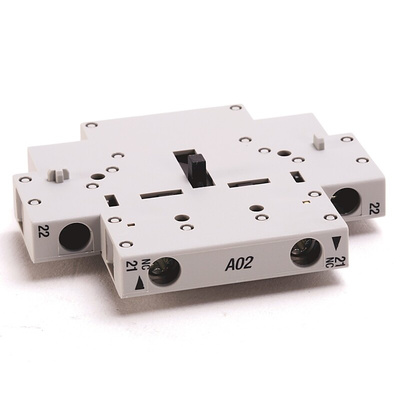

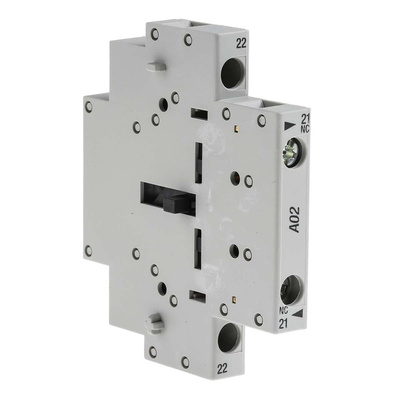

Allen Bradley Contactor Interlock For Use With 100C Series, 9mm - 100-MCA02

Expand your contactor circuits with this high-quality mechanical interlock from Rockwell Automation's Allen Bradley range. It can be used to connect two contactors in such a way that only one is on at a time, even when you turn it on manually. This component comes with two auxiliary normally closed (NC) contacts on the forward and reverse contactors. This is ideal for use with motor starters, as it prevents the reverse contactor from being accidentally energised when the motor's running forward.

• Can be mounted in either a horizontal or vertical position• Slim design for efficient packing• 9mm connection piece for easy installation• Finger-safe terminals prevent electric shocks

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)• IEC (International Electrotechnical Commission)• CSA (Canadian Standards Association)• CE (Conformité Européenne)

Why do I need to interlock my contactors?

It's important to interlock contactors because it protects your motors from damage. If the contactors aren't interlocked, they may actuate simultaneously, causing both the forward and reverse motors to start at the same time and act against each other.
