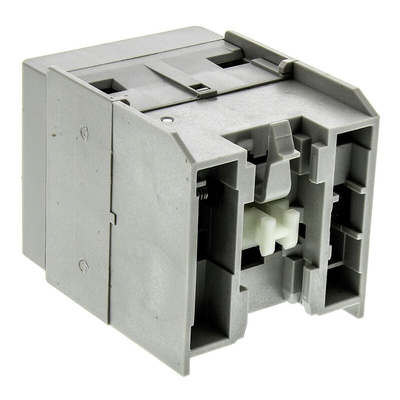

100-FPTA30, Allen Bradley Bulletin Pneumatic Timer for use with 100-C or 700-CF with AC or 24V DC electronic coils, Таймер

MCS Pneumatic Timing Modules

Provide a selectable delay time ON or OFF according to module used, after the operation of the contactor module
Maybe used with contactor modules (100-C Series) or control relay modules (700-CF Series)

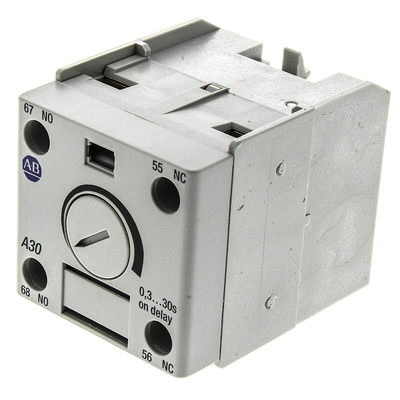

Allen Bradley Bulletin Pneumatic Timer, 0.3 to 30sec Range, DPST - 100-FPTA30

Provide timing and synchronisation to your control circuits with this pneumatic timer from Rockwell Automation's Allen Bradley range. This device has an analogue ON delay function that you can manually set between 0.3 and 30 seconds. This means that while the contacts on the main contactor continue to operate, the timing contacts only switch on after the set time. The unit is compatible with all contactors in the 100-C range for flexibility. It's commonly used to synchronise lighting circuits in industrial applications.

• Double-pole single-throw (DPST) configuration controls two circuits for improved performance• Pneumatic accessory type only requires a small amount of compressed air to operate for energy efficiency• Thermoplastic housing material for impact and dust resistance and a long life-span• Easy installation without complex tooling saves time and energy

Standards and Certifications

• CE (Conformité Européenne)• RoHS (Restriction of Hazardous Substances)• CSA (Canadian Standards Association)

How do I maintain this component?

It's important to regularly check that the right air pressure is allocated to this device and that there's no leakage in the supply tube, as this may affect the accuracy of its timing.
