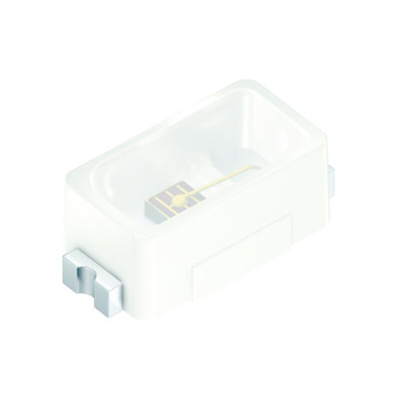

ams OSRAM LED SMD, CH DELSS1.22

The OSRAM Opto Semiconductors FIREFLY E1608 family expands OSRAM Opto Semiconductors’ portfolio of visible products for use in mobile devices like fitness tracking or health monitoring. It offers one of the smallest LED footprints in a highly reliable and proven package. The compact size of only 0.8 mm x 1.6 mm x 0.6 mm allows customers the benefit of more flexible product designs. The hyper red CH DELSS1.22 is specially designed for SPO2 applications. It features a special narrow wavelength of 655 nm to improve signal detection, that is ideally matched to these applications.

Package white SMT package, colourless clear resin
Chip technology thinfilm
Narrow wavelength
Typical radiation 120° (Lambertian emitter)
Colour hyper red
ESD 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

Datasheet - CH DELSS1.22
