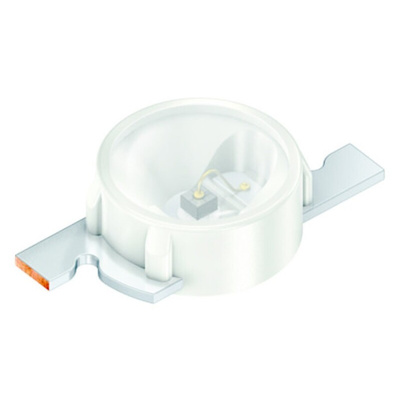

ams OSRAM LED SMD, LT PWSG-BACA-36-N626-20-SF

The OSRAM Opto Semiconductors PointLED® with a diameter of just 2 mm, the PointLED is one of the smallest packages in its class and achieves high luminous efficiency, use to its round and flat package, measuring only 0.775 mm high. It is ideal for application where space is a sensitive issue. It can be used in various applications such as electronic equipment, interior illumination as well as in health monitoring.

Package white SMT package, colourless clear silicone resin
Chip technology UX:3
Typical radiation 120° (Lambertian emitter)
Colour true green
Corrosion robustness Class 1B
Qualifications AEC-Q101-REV-C,
ESD 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

Datasheet - LT PWSG-BACA-36-N626-20-SF
