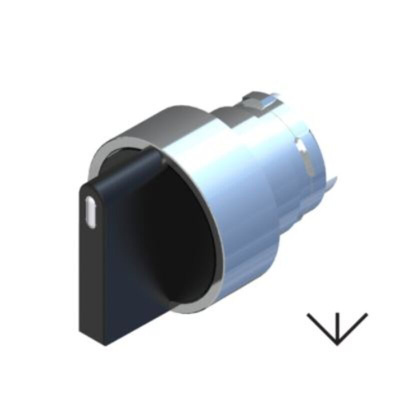

RS PRO 3 Position Selector Switch Head, 22.5mm Cutout, Black Handle

RS PRO Selector Switch Heads – Short Lever

From the trusted brand RS PRO, a range of high-quality selector switch heads designed to be used in conjunction with a compatible contact block and support base. These non-illuminated selector switch heads have a chrome-plated body, short lever actuator and are available with 2 or 3 switch position options. During application, they are front panel mounted via a 22 mm cut-out and should be connected to a support base secured with screws. Once fully operational the selector switch heads open and close contacts, turn right, left, and centre with a positive feel without rotation of the operators.

Features and Benefits

• Front panel mount


• Black short lever


• Chrome plated outer


• Non-illuminated


• Switch position: 2 or 3


• Switch Actuation: Maintained, Spring Return from left and Right, Return from Left, Return from Right options


• Outer diameter: 30 mm


• IP65 rating

Mechanical Specification

• Operating Temperatures: -25 °C to +70 ° C


• Stock Temperatures: -40 °C to +80 ° C


• Mechanical durability (Millions of operations): 0.3


• B10d (Millions of operations): 0.6


• Max. switching frequency [Cicli/h] 3600

Switch Actuation Variants – Available Separately

• 2 Position, Maintained - RS stock no: 238-3918


• 2 Position, Spring Return from Right - RS stock no: 238-3920


• 3 Position, Maintained - RS stock no: 238-3921


• 3 Position, Spring Return from Left and Right - RS stock no: 238-3922


• 3 Position, Spring Return from Left - RS stock no: 238-3923


• 3 Position, Spring Return from Right - RS stock no: 238-3924

Applications

• Automotive


• Building and Public Works


• Industrial Controls


• Control System


• Lighting Controls


• Medical Equipment


• Commercial Kitchen Appliances

Why would you choose RS PRO for Selector Switch Heads?

RS PRO offer a comprehensive range of selector switch heads which include non-illuminated and illuminated. Each selector switch head is of the high-quality, available in a variety of switch actuations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
