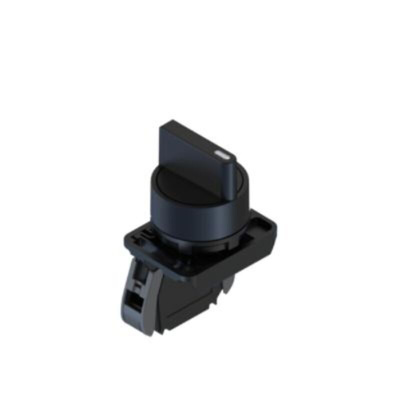

RS PRO IP20, IP65 Selector Switch, 1NO 2-Way

RS PRO Selector Switch Complete Units - Short Lever

RS PRO is proud to introduce the GCX series selector switches. These selector switches are complete units made from the highest quality materials and include a selector switch head, contact block, and support base. Upon inspection, the selector switch heads are non-illuminated, have a black thermoplastic outer body and a short lever actuator. The contact blocks are available in multiple contact configurations with 2 switch positions and the support base mounts securely into panels up to 6mm thick eliminating movement in the mounting hole.

What is a Selector Switch?

Selector switches are mechanical devices designed to open or close electrical contacts. They are commonly used in start/stop machine applications or to switch between various electric circuits. During application, they are front panel mounted via a 22 mm cut-out and should be connected to a support base secured with screws. Once fully operational the selector switch heads open and close contacts, turn right, left, and centre with a positive feel without rotation of the operators.

Features and Benefits

• Front panel mount


• Short lever switch head


• Colour: Black


• Non-illuminated


• Switch position: 2


• Contact Configuration: 1NO, 1NO/1NC available


• Support base


• Connecting Terminals: Screw with captive cable clamp


• Switch Actuation: Maintained or Spring Return from Right


• Cut-out Diameter: 22.5 mm


• Outer diameter: 30 mm


• IP65 rating

Mechanical Specification

• Operating Temperatures: -25 °C to +70 ° C


• Stock Temperatures: -40 °C to +80 ° C


• Mechanical durability (Millions of operations): 0.3


• B10d (Millions of operations): 0.6


• Max. switching frequency [Cicli/h] 3600

Selector Switch Complete Unit Variants – Available Separately

• 2 Position, Maintained, 1NO - RS stock no: 238-3960


• 2 Position, Maintained, 1NO+1NC - RS stock no: 238-3961


• 2 Position, Spring Return from Right, 1NO - RS stock no: 238-3962

Applications

• Automotive


• Building and Public Works


• Industrial Controls


• Control System


• Lighting Controls


• Medical Equipment


• Commercial Kitchen Appliances

Why would you choose RS PRO for Selector Switch Complete Units?

RS PRO offer a comprehensive range of selector switch complete units which include non-illuminated and illuminated. Each selector switch is of the highest-quality, available in a variety of switch actuations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
