Aim-TTi PSA2703USC Handheld Spectrum Analyser, 2.7GHz

Product Details

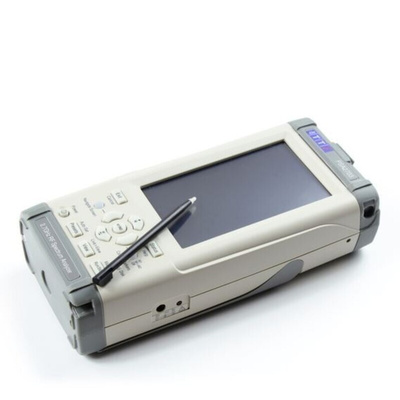

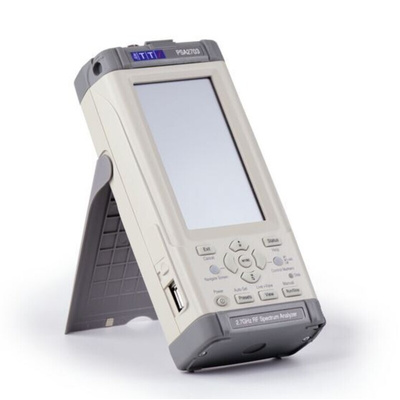

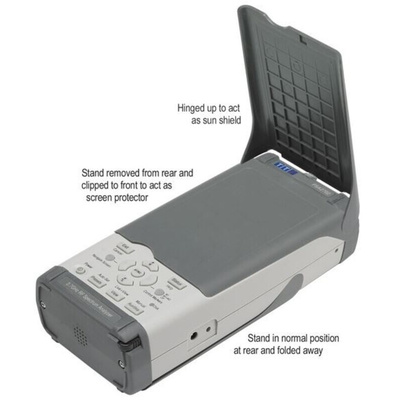

A lightweight and truly handheld instrument that incorporates an extensive feature set. A ruggedized casing with a removable sun screen/screen protector to enhance field use. The 4.3 inch TFT with 3 row hierarchical menu system provides rapid access to all features. Additional Hard keys are provided for marker movement and short cuts to major functions. On time is almost instant with the first sweep available in under 2 seconds. Addition of the U01 upgrade adds additional limit lines and patterns, data logging, sweep triggers, compensation tables, custom pre-sets and view on PC capability.

Features and benefits

1Mhz to 2.7GHz
-105dBm noise floor
Truly portable, only 0.58 kg
Frequency pre-set and setup store
Resolution Bandwidths 300Hz to 10MHz 1:3:10
Twin markers, Peak track smart markers
U01* Extended feature set:
limit lines, data logging, sweep trigger'
Compensation tables,
Custom presets

Applications

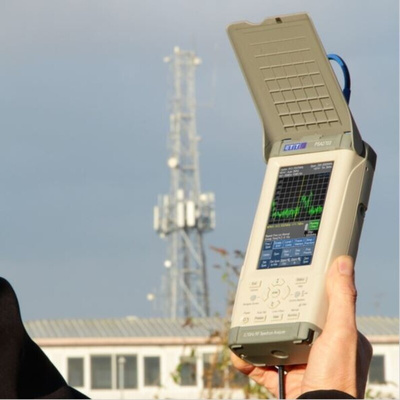

The PSA S3 will find many applications within radio communication field environments such as:
Interference analysis
Antenna alignment
Signal strength mapping
Covert transmitter detection
Spurious emissions
EMC frequency evaluations

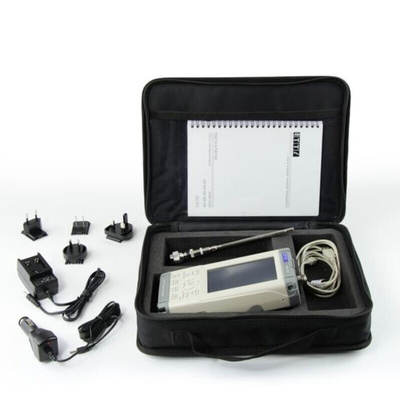

Supplied with:

Universal voltage mains adaptor/charger
USB connection lead
Spare stylus
BNC converter for trigger input
Safety documentation
Firmware Upgrade U01 (installed)
Telescopic Antenna WB-ANT
Vehicle Charger PSA-VC
Travel Case PSA-SC

What other Spectrum Analyser are available in this Aim-TTi range?

Please list RS SN of SA in same range
826-2708
826-2717
826-2710
826-2714
787-7686

Datasheet - PSA2703USC
