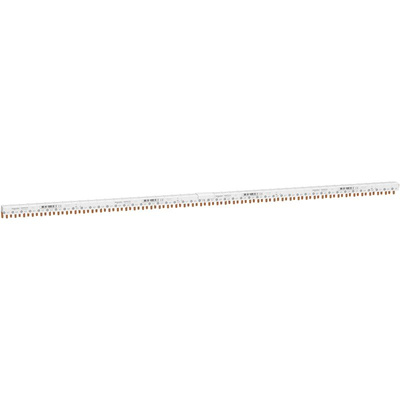

A9XPN748, Schneider Electric Acti9 1 Phase Busbar, 230 V, 400 V, 9mm Pitch

The Schneider Electric comb busbar Acti9 is 3L+N balanced and 9 mm pitch with 48 modules.

Number of ways 16 ways N + 3 L (balanced)
Poles configuration for 1 way 1 x 3P + N
1 x 3P
3 x 1P + N
Connection pitch 9 Mm between phase and neutral
18 mm between phases
Connector type tooth
Distance between way 54 mm
Marking N L1 N L2 N L3
Insulation Insulated
Device presentation Cuttable
Rated operational current 80 A at 40 °C
Rated operational voltage 230 V AC Ph/N
Rated insulation voltage 440 V AC conforming to IEC 61439-1
Rated impulse withstand voltage 4 kV
Mounting mode Horizontal
Mounting location Top on tunnel type terminals
9 mm pitches 96
Height 29 mm
Width 862 mm
Depth 26 mm
Net weight 579 g
Colour white
